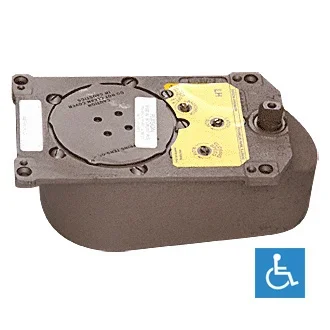

CRL PH328105SH0L85 Rixson PH328 8.5 Lbs. Left Hand 105 Hold Open Floor Closer Body for Patch Fittings
C.R. Laurence Rixson PH328 Series 8.5 Lbs. Center-Hung Left Hand 105 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings is expertly engineered to provide reliable door control in both commercial and residential settings. Designed to meet ADA accessibility requirements, this floor closer features a manageable 8.5 lbs. opening force, ensuring ease of use for all individuals. The tapered spindle design integrates seamlessly with patch fittings, accommodating doors weighing up to 325 lbs. and up to 42 inches wide. This versatile closer also includes a selective hold-open feature, allowing users to choose between holding the door open or allowing it to close with a simple adjustment.Additional highlights include independent valves for closing, latching, and back check adjustments, enabling precise control over door operation. The built-in positive dead stop enhances durability and safety, while certifications like ANSI 117.1 and ANSI 156.4 Grade 1 assure you of its quality and reliability. For enhanced installation, optional accessories such as the Floor Closer Cement Case and Closer Cover are available. Overall, the Rixson PH328 is an ideal choice for those seeking a robust, compliant, and efficient door closer solution.
Rixson PH328 Series 8.5 Lbs. Center-Hung Left Hand 105 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
- Physically Handicapped 8.5 Lbs. Opening Force for Compliance with ADA Accessibility Requirements
- Tapered Spindle Design Intended for use with Patch Fittings
- Selective On or Off Hold-Open
This
Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42″ (1.07 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.
Optional accessories that may be needed are:
Floor Closer Cement Case
Closer Cover
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
