Description
CRL 2890SH0LHSC Rixson Satin Chrome 28 Series Left Hand 90 Floor-Mounted Closer Package
CRL 2890SH0LHSC Rixson Satin Chrome 28 Series Center-Hung Left Hand 90 Selective Hold Open Floor Mounted Closer is engineered for both exterior and interior doors, offering a robust solution with a 350 lb (159 kg) capacity. This complete package includes a closer body, cement case, finished cover plate, bottom arm, and top pivot, ensuring you have everything needed for installation. One of the standout features of this closer is its Selective Hold Open capability, allowing doors to remain open at various angles while still maintaining control. The built-in positive dead stop prevents the door from swinging beyond the specified opening degree, which can be set for either 90º or 105º. With separate and independent valves for closing speed, latching speed, and backcheck adjustments, you can customize the operation to meet your needs. Designed to withstand high traffic and heavier doors, the CRL Rixson Floor Closer boasts an ANSI 156.4 Grade 1 certification and is UL Listed, ensuring compliance with industry standards. With a 10-year limited warranty and options for additional finishes and accessories, this closer is a reliable choice for professional building projects.
Rixson Satin Chrome 28 Series Center-Hung Left Hand 90 Selective Hold Open Floor Mounted Closer – Complete Package
- For Exterior or Interior Doors
- Selective Hold Open Feature
- 350 Lb. (159 kg) Capacity
- Built-In Positive Dead Stop
- Adjustable Backcheck
- ANSI 156.4 Grade 1
- 10 Year Limited Warranty
- UL Listed
Rixson® Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson® Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
FEATURES AND SPECIFICATIONS:

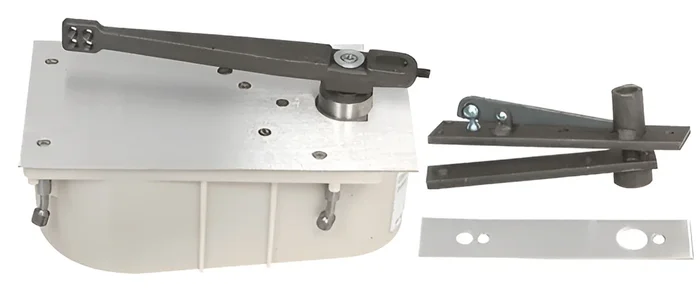

CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot
The following components are included to complete the job:
253000
Floor Closer Cement Case
284720RH
Closer Cover
282026
Bottom Center-Hung Arm
340
Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
