Description

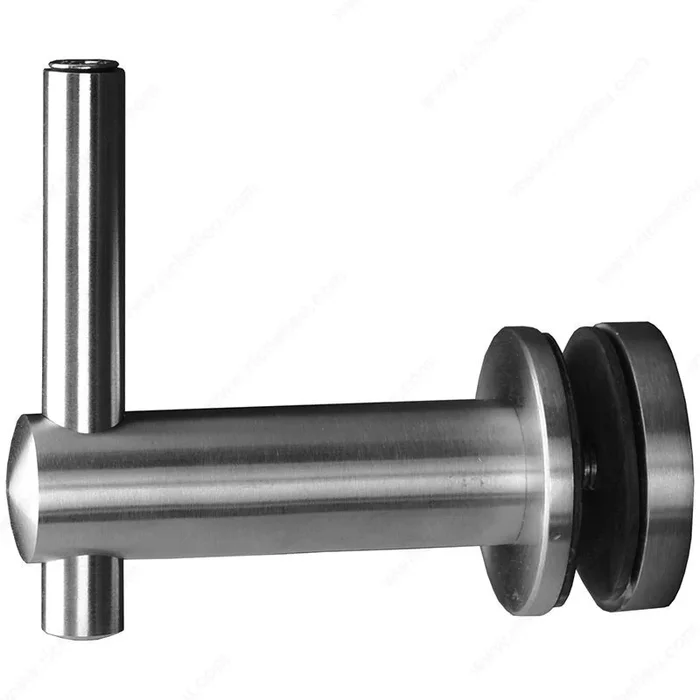

Richelieu SSGF0010016S Adjustable Round Glass Mount Bracket
Richelieu SSGF0010016S Round Glass Mount Adjustable Height Bracket offers a sleek and sturdy solution for supporting handrails off glass panels. Crafted from premium Stainless Steel 316, this bracket not only ensures durability but also delivers a modern aesthetic suitable for both interior and exterior applications. The adjustable height feature allows for customization to meet your specific requirements, enhancing versatility in various installations. Designed to accommodate either round or flat surface handrails, the SSGF0010016S bracket requires the selection of an appropriate saddle, which is sold separately. Installation is straightforward, with included screws for secure saddle attachment. The bracket’s arm size measures 1 inch, and it has a projection of 3 1/8 inches, making it a practical choice for diverse environments. For optimal performance, glass drilling is required, and the recommended safety glass thickness ranges from 13/32 to 31/32 inches. The bracket features a milling diameter of 5/8 to 3/4 inches, and its mounting plate measures 2 inches, ensuring a solid foundation for your handrail. With its robust construction and thoughtful design, the Richelieu SSGF0010016S is an essential component for any glass railing system.
Round Glass Mount Adjustable Height Bracket
Stainless steel bracket, designed to support a handrail off a glass panel and adjustable to your desired height.
Can be installed with either round or flat surface handrails by choosing the appropriate saddle (sold separately).
The screws to install the saddle are included with the bracket.
Attributes
Adjustment: Adjustable Height
Arm Size: 1 in
Category: Brackets
Finish: Stainless Steel
Glass Drilling: Required
Material: Stainless Steel 316
Milling Diameter: 5/8 to 3/4 in
Mounting Plate: 2 in
Product #: SSGF0010016S
Projection: 3 1/8 in
Recommended Location Usage: Interior, Exterior
Saddle: Sold Separately
Safety Glass Thickness: 13/32 to 31/32 in*
Thread Type: M8
Type of Mounting: Glass Mount
