Description

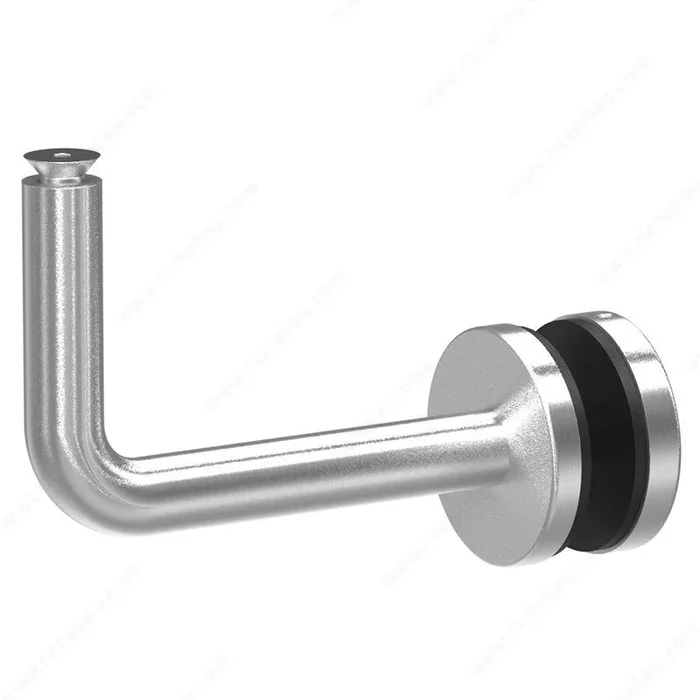

Richelieu SSGF11GM17S Round Glass Fixed Mount Bracket
Richelieu SSGF11GM17S Round Glass Mount Fixed Bracket offers a robust solution for supporting handrails from glass panels, making it ideal for both interior and exterior applications. Constructed from durable Stainless Steel 316, this bracket combines strength with a sleek aesthetic, ensuring it withstands the elements while maintaining a modern look. Designed for versatility, the SSGF11GM17S accommodates both round and flat surface handrails, provided you select the appropriate saddle, which is sold separately. Installation is straightforward, as the necessary screws for securing the saddle are included. The fixed position of the bracket ensures stability, with an arm size of 1/2 inch and a projection of 3 1/8 inches, providing a clean and unobtrusive appearance. For proper installation, glass drilling is required, with a recommended safety glass thickness ranging from 15/32 to 1 inch. The milling diameter is compatible with 5/8 to 3/4 inch glass, allowing for a secure fit. With a mounting plate size of 1 1/2 inches and M8 thread type, the Richelieu SSGF11GM17S is the ideal choice for those seeking a reliable and stylish glass mount solution.
Round Glass Mount Fixed Bracket
Stainless steel bracket, designed to support a handrail from a glass panel.
Can be installed with either round or flat surface handrails by choosing the appropriate saddle (sold separately).
The screws to install the saddle are included with the bracket.
Attributes
Adjustment: Fixed Position
Arm Size: 1/2 in
Category: Brackets
Finish: Stainless Steel
Glass Drilling: Required
Material: Stainless Steel 316
Milling Diameter: 5/8 to 3/4 in
Mounting Plate: 1 1/2 in
Product #: SSGF11GM17S
Projection: 3 1/8 in
Recommended Location Usage: Interior, Exterior
Saddle: Sold Separately
Safety Glass Thickness: 15/32 to 31/32 in*
Thread Type: M8
Type of Mounting: Glass Mount
