Description

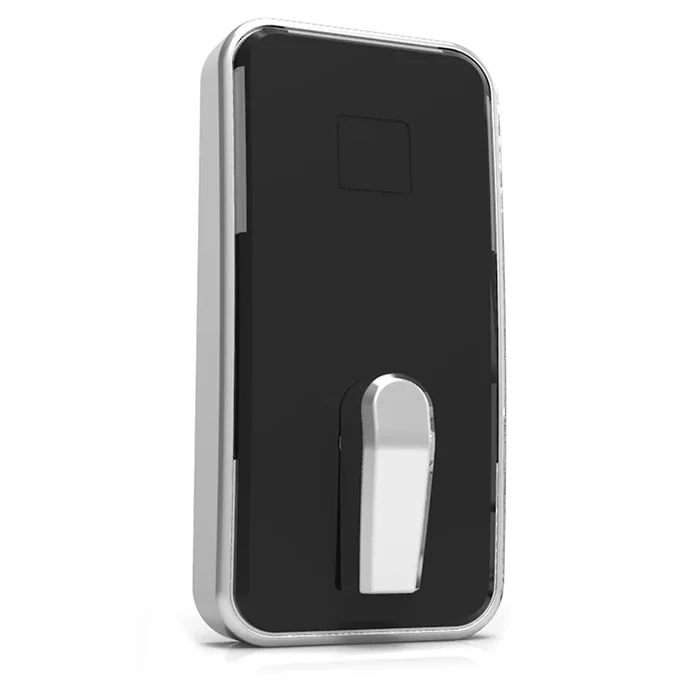

Dormakaba MD0032-ECB-CB-0 Saffire LX-D RFID Deadbolt, 3-Hour Fire Rated, Bluetooth Enabled, Satin Chrome
Dormakaba Multi-Housing MD0032ECBCB0 Saffire Electronic LX-D RFID Deadbolt offers cutting-edge security and convenience for commercial applications. This electronically powered lock features a robust 3-hour fire rating, ensuring safety without compromising accessibility. The lock is designed with a sealed, built-in contactless RFID reader, which maximizes security while facilitating mobile access, enabling seamless entry for authorized users. Meeting BHMA Grade 2 certification, the MD0032ECBCB0 is constructed to withstand the rigors of daily use. It supports Community Access Management Software, allowing for intuitive keycard control and over-the-air lock updates, ensuring your security system remains current and efficient. The adjustable backset accommodates both 2-3/8″ and 2-3/4″ backset configurations, making it versatile for various door types. With dimensions of 2-2/3″ x 5-1/2″ for both the exterior and interior, and suitable for doors ranging from 1-3/8″ to 2-1/2″ in thickness, this cylindrical chassis lock is designed for durability. Finished in satin chrome with a black facia, it blends functionality with a modern aesthetic. Powered by 3 AA batteries, the MD0032ECBCB0 is both reliable and easy to maintain, backed by a limited 2-year warranty for peace of mind.
Saffire Electronic LX-D RFID Deadbolt 3-Hour Fire Rating Bluetooth Low Energy Enabled (BLE) Electronic Lock Override (ELO) Vertically Mounted Operated by Community Software Satin Chrome with Black Facia Finish
- Maximizes security and reliability with sealed, built-in contactless RFID reader
- Mobile access enabled lock
- Supported by Community Access Management Software for intuitive keycard control
- Over-the-air lock updates
- Meets BHMA Grade 2 certification
Attributes
Alternate Codes: MD0032-ECB-CB-0, MD0032ECBCB0
Backset: Adjustable 2-3/8″ or 2-3/4″ Backset
Battery Life: Up to Two Years
Bolt Projection: 1 In.
Category: Commercial Electronic Devices
Chassis Type: Cylindrical Chassis
Crossbore Size: 2-1/8″ Bore
Dimension: 2-2/3″ x 5-1/2″ Exterior and Interior
Door Range: 1-3/8″ to 2-1/2″
Door Thickness: 1-3/8″ to 2-1/2″
Finish: Satin Chrome
Finish : Satin Chrome
Fire Rated: Yes
Fire Rating: Yes {Variable}
Function: Proximity Locking
Grade: Grade 2
Hazardous Material: NO
Latch Faceplate Dimension: 1″ x 2-1/4″
Limited Warranty: 2 Years
Manufacturer Warranty: Limited 2 Year Warranty
No Of Inners: 1
Order_ Qty: 1
Pack Qty: 1
Power: 3 AA Batteries
Power Supply: 3 AA Batteries
Product Type Used With: Deadbolt
Reader Type: RFID
Series: LX-D Series
Strike: Deadbolt Strike
Strike Dimension: 1″ x 2-1/4″
Subcategory: Commercial Electronic Locksets
Subtype: Electric Cylindrical Lock
Type: Electric Locks
Ul Listing Type: UL 10C and ULC S-104
Unit of Measure: Each
Resources
- Cut Sheet
- Saffire LX EVO Mortise and Cylindrical Locks Install Guide
- Saffire LX EVO User Guide
- Saffire LX-D EVO Deadbolt Install Guide
- Saffire LX-D Fact Sheet
- Saffire LX-I Fact Sheet
- Saffire LX-L Fact Sheet
- Saffire LX-M Fact Sheet
- Saffire LX-P Fact Sheet
