Sargent 44 RF 10 1-1/2″ Mortise Cylinder Instructions

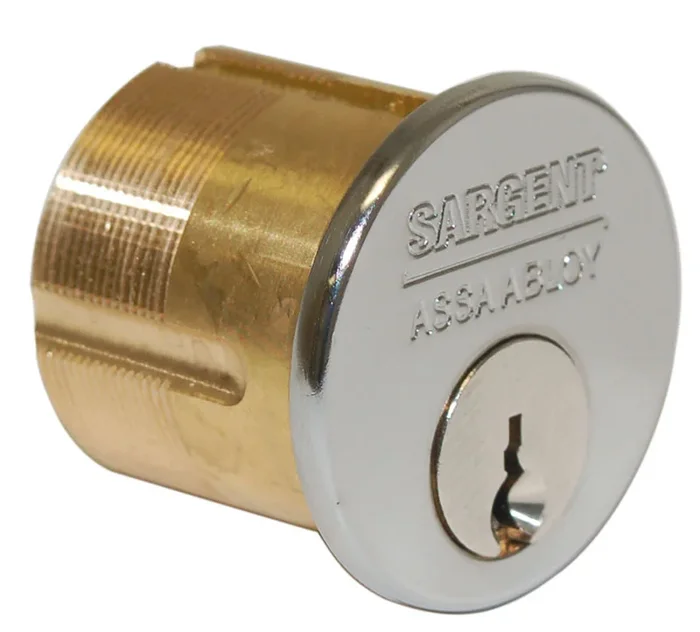

Sargent 44 RF 10 1-1/2 Mortise Cylinder offers a robust and reliable locking solution designed for enhanced security. Crafted from solid brass, this cylinder features a satin bronze finish that complements a variety of architectural styles. The standard configuration includes the number 97 rosette and a compression spring, ensuring smooth operation and longevity.Measuring 1-1/2 inches in length, the Sargent 44 is versatile, accommodating various door thicknesses with additional optional collars and spacers available for separate order. It comes standard with the Sargent offset cam number 13-0664, but other cam types are also available to meet specific requirements. The cylinder supports a keying option of “keyed different” and includes two cut keys, enhancing accessibility for different users. Built with precision in the USA, this mortise cylinder ensures a high degree of protection for your doors. The weighted design (0.57 lbs) and compact packaging dimensions make it easy to handle and install. Whether for residential or commercial applications, the Sargent 44 RF Mortise Cylinder stands out for its quality construction and reliable performance, making it a trusted choice for building professionals and discerning homeowners alike.
1-1/2 Mortise Cylinder
1-1/2″ Mortise Cylinder, RF Keyway, Satin Bronze
Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8″ through 3″, minimum length for 7-Pin is 1-1/4″. They are provided standard with Sargent offset cam number 13-0664, other cams are available.
SARGENT offers the right Degree of protection for every door.
Attributes
Baa Qualified: Yes
Base Material: Bronze
Cam Number: 13-0664
Cam Type: Sargent, Yale
Country of origin: USA
Cylinder Length: 1-1/2 In.
Cylinder Type: Mortise Cylinder
Finish: 612/US10
Keying: Keyed Different
Keys: Cut
Of Keys: 2
Origin: USA
Pack Height: 1.88″
Pack Length: 4.13″
Pack Qty: 1
Pack Volume: 18.37 in³
Pack Width: 2.38″
Pins: 6
Series: Mortise Cylinders
Ship Weight: 0.57 lbs.
Std Keyway: RF
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
