Description

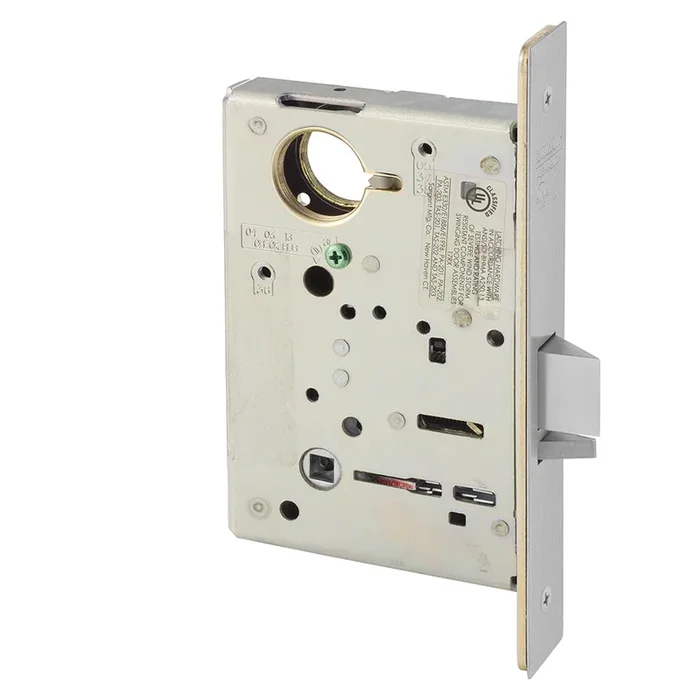

Sargent 8267 26D Mortise Lock
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Attributes
Ansi Function: F26 – Institutional Privacy
Application: Lockbody Only
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″ Latch
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Finish : Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 67-Institutional Privacy
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Keyway: LA
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Pins: 6
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 3.1 lbs.
Std Keyway: LA
Std Strike Height: 4-7/8″
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike Height: 4-7/8″
Strike Number: 82-0110
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
