Description

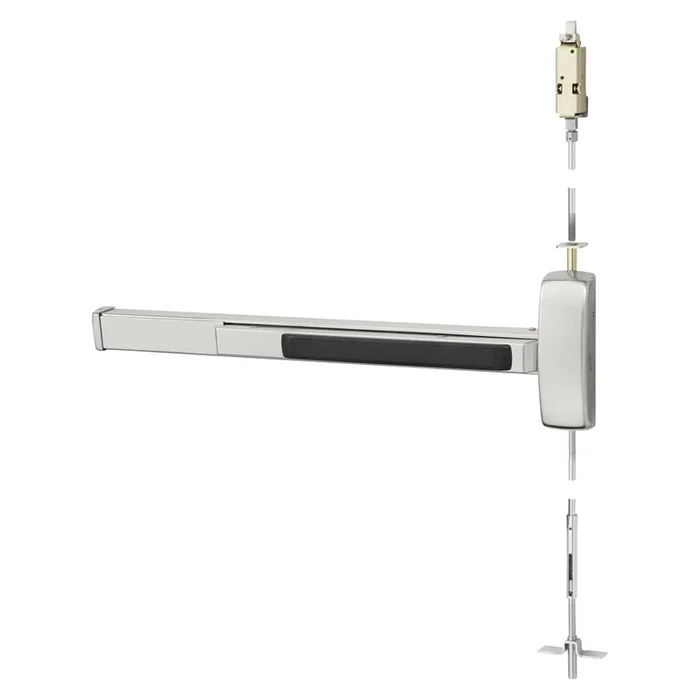

Sargent 5556-AD8610F ETW LHR 32D CVR Exit Device – Exit Only
Sargent 5556-AD8610F ETW LHR 32D CVR Exit Device, Exit Only is a robust Grade 1 concealed vertical rod exit bar designed for maximum security and durability in commercial environments. This 36-inch device is specifically engineered for doors up to 96 inches in height and features a wide stile pushpad for ease of use. Its electric latch retraction ensures quick and reliable access, while the request-to-exit switch enhances safety protocols. Designed to meet the rigorous ANSI/BHMA Grade 1 standards, the Sargent 80 Series exit devices boast modular construction and minimal moving parts, resulting in a maintenance-free solution that stands the test of time. The left-hand reverse configuration and dummy function provide flexibility for various installation requirements, making it a versatile choice for both single and double door applications. With a sleek satin stainless steel finish, this exit device not only offers superior functionality but also complements modern architectural designs. Additionally, the device includes a lever with escutcheon trim, ensuring a seamless integration into any commercial space. Ideal for hollow metal doors, the Sargent 5556-AD8610F is backed by a 5-year limited warranty, underscoring its reliability and performance in demanding settings.
CVR Exit Device, Exit Only
Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Dummy Function, W Lever with Escutcheon, Electric Latch Retraction, Request to Exit Switch, Less Dogging, Satin Stainless Steel Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The Sargent 8600 Series provides simplicity, strength, and durability.
The 8600 Series is designed for standard width stile applications on hollow metal doors and has both single and double door applications.
- Door Types Metal Doors, 1-3/4″ (44mm) minimum thickness.
- For doors over 1-3/4″ to 2-1/4″ thick, specify thickness and order as 31-4-1/2″ (114mm) minimum stile width
- Rails are available in 4 sizes, use door width to determine size needed.
- Rails will be factory cut to size, if door width is supplied
- E Rail for 24″ to 32″ door widths, No cutting required for 32″ door
- F Rail for 33″ to 36″ door widths, No cutting required for 36″ door
- J Rail for 37″ to 42″ door widths, No cutting required for 42″ door
- G Rail for 43″ to 48″ door widths, No cutting required for 48″ door
- Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- forcylinder dogging (#41 cylinder supplied)
- Electric Options AL- Alarm
- BT- Beacon™
- PL- SARGuide™ Photoluminescent Coated
- TL- SARGuide™ Illuminated Touchpad
- 53- LX Latchbolt Monitor
- 54- Outside Lever Monitoring
- 55- Request-to-Exit Signal – Rail Monitoring
- 56- Remote Latch Retraction
- 57- Delay Egress & Electromagnets
- 58- Electric Dogging
- 59- Electroguard – Self Contained Delayed Egress
- Mounting Fasteners Supplied standard with machine screws
- Top Bolt: Stainless steel
- Device Centerline from Finished Floor:41″ (1041mm) for Standard Applications,38″ (965mm) for elementary schools and to meet local accessibilitystandards when a 100 Series Auxiliary Control is used
- Door/Opening Height: Must be specified – 120″ (3048mm) Max Door Opening
- 96″ max door height for HC and WS options
- Center Case Dimensions: 8-3/8″ (213mm) x 2-5/8″ (67mm)
- Projection: Pushbar Neutral – 3″ (76mm),Pushbar Depressed – 2-1/8″ (54mm)
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Less Dogging
Door Height: 96″
Door Material: Aluminum
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 33″ to 36″
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Dummy
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Reversible: No
Series: 8600 Series Concealed Vertical Rod Exit Devices
Ship Weight: 18 lbs.
Strike Bottom: 640.0
Subtype: Concealed Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 640.0
Trim Design: Lever with Escutcheon
Trim Part No: 710-4 ETW LHRB 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL305
Unit of Measure: Each
Resources
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 16-LP/LR/LS8600 Low Profile Rail Assemblies Parts List
- 43-Flush End Cap Rail Cutting Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 56-Electric Latch Retraction Exit Device Sell Sheet
- 565 & 665 Metal End Cap Kit Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 80 Series Brochure
- 80 Series Mechanical Panic Exit Device – Environmental Product Declaration (EPD)
- 816 Cylinder Dogging Kit Parts List
- 8600 Series Concealed Vertical Rod Exit Devices Cut Sheet
- 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
- AL- Alarmed Exit Device Installation Instructions
- Basic Fundamentals – Exit Devices
- Electric Dogging for 80 Series Installation Instructions
- LR8600 Concealed Vertical Rod Series Active Mortise Case Assembly Parts List
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- WD8600/12-WD8600/NB-WD8600/NB-12-WD8600 Concealed Vertical Rod Exit Device Installation Instructions
- Windstorm Solutions – Exit Devices
