Description
Sargent 70-8205 LW1J 26D Grade 1 Entry with Turn Knob, No Deadbolt Instructions
Sargent 70-8205 LW1J 26D Gr 1 Entry wT-turn, No DB presents a robust solution for any office or entryway with its high-performance features. This mortise lock, featuring an LW1 escutcheon and J lever design, is prepared for a SFIC core, ensuring maximum security and flexibility. Built to exceed ANSI/BHMA A156.13 Series 1000 Grade 1 standards, it stands as one of the most durable options available in the industry. This lock not only meets rigorous strength and cycle testing but is also UL-cUL listed for three-hour fire doors, ensuring safety in emergencies. The thru-bolted lever trim and fortified cylinder retainer enhance its reliability, while the availability of various lever designs and architectural finishes offers aesthetic versatility suitable for diverse applications-from offices to healthcare facilities. Installation is made simple with its multifunctional lockbody, which allows for easy switching of functions, reducing inventory needs. Additionally, backed by a ten-year warranty, the Sargent 70-8205 ensures long-term peace of mind. Experience the perfect blend of strength, reliability, and design with this exceptional mortise lock, tailored for demanding environments.
Gr 1 Entry wT-turn, No DB

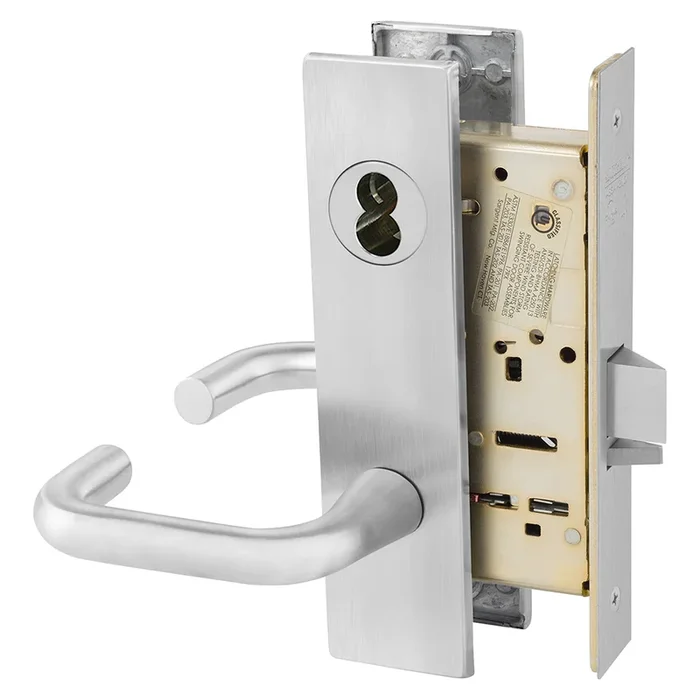

Office or Entry Mortise Lock, LW1 Escutcheon, J Lever, SFIC Prep Less Core, Satin Chrome
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F04 – Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 05-Office or Entry
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: J – Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Roseescutcheon Design: LW1 – Escutcheon
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
