Description

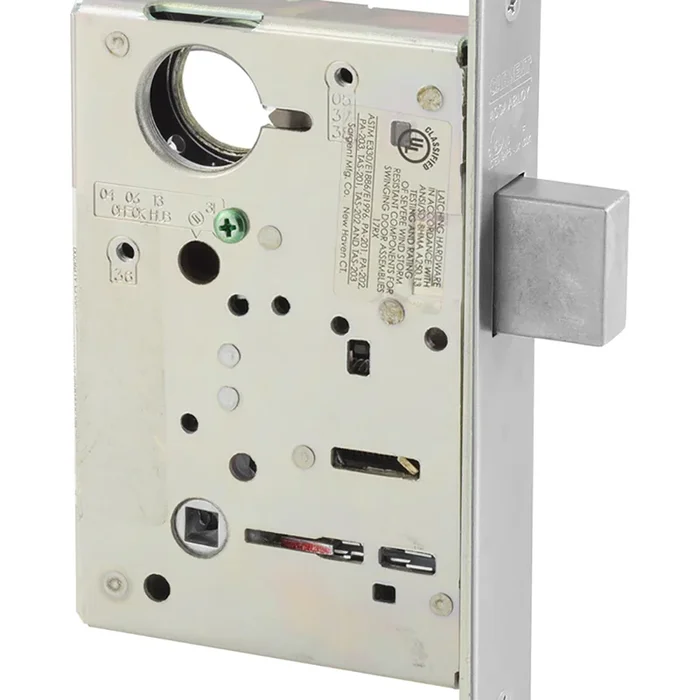

Sargent LC-8221 26D Grade 1 Deadlock with T-Turn Instructions
Sargent LC-8221 26D Grade 1 Deadlock wT-turn offers unparalleled security and reliability for any commercial or residential setting. This Grade 1 mortise deadbolt is designed as a single cylinder and features a flat strike in a sleek satin chrome finish, ensuring both style and functionality. It is not handed, allowing for versatile installation on various door types. Constructed with premium materials, this deadlock exceeds ANSI/BHMA Grade 2 standards for cycle and strength requirements, making it one of the most durable mortise locks available. Additionally, it is UL-cUL listed for three-hour fire doors and windstorm applications, enhancing its safety credentials. The lock is compatible with a range of security key systems, including Degree and Signature, and comes with a robust 10-year warranty. With options for 58 different functions, including electromechanical and monitoring capabilities, this deadlock provides flexibility for diverse applications, from offices to healthcare facilities. The availability of six lever designs and 14 architectural finishes allows for customization to match any aesthetic. The patented design ensures ease of installation and maintenance, making the Sargent LC-8221 an ideal choice for professionals seeking strength, security, and style.
Grade 1 Deadlock wT-turn
Grade 1 Deadlock Mortise Deadbolt Only, Single Cylinder, Not Handed, Less Cylinder, Flat Strike, Satin Chrome
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F17 – Single Deadlock
Baa Qualified: Yes
Bolt Projection: 1 In. Deadbolt
Country of origin: USA
Cylinder Type: Less Cylinder
Door Thickness: 2-1/4 In. – 2-1/2 In.
Finish: 626/US26D
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 21-Deadlock
Grade: Grade 1
Handing: Not Handed
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 4.05 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Deadbolt
Std Strike Height: 4-7/8 In.
Std Strike Number: 7730
Std Strike Type: Flat Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Deadbolt Only
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
