Description

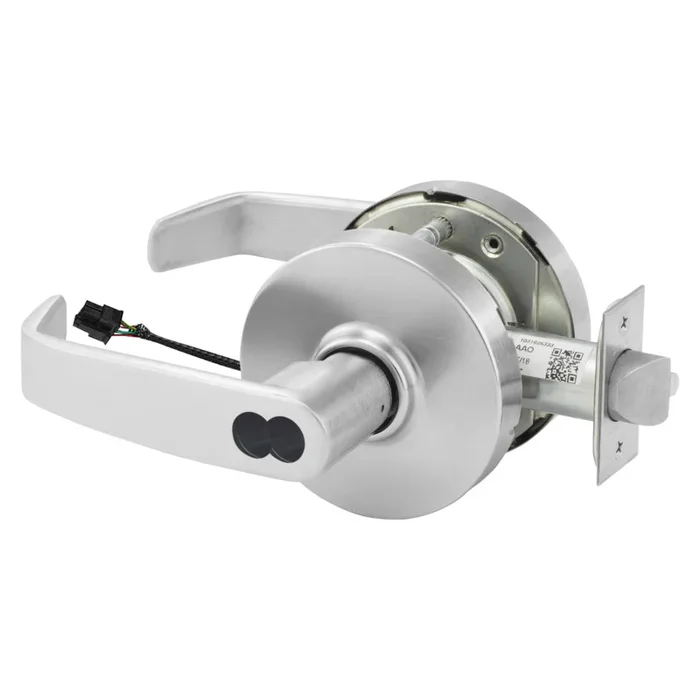

Sargent 2370RX-10XG71 LL 26D Grade 1 Electric Lock, Fail Secure
Sargent 2370RX-10XG71 LL 26D Grade 1 Electric Lock is designed for high-traffic areas, combining durability and advanced security in one robust solution. This Grade 1 electrified cylindrical lockset features a fail-secure function, ensuring that the lock remains secure even during power outages. The L lever and L rose design provide both aesthetic appeal and user-friendly operation. With a 3-3/4″ backset and a deadlatch mechanism, this lockset is perfect for commercial applications, accommodating door thicknesses ranging from 1-3/4″ to 2″. The satin chrome finish not only enhances its visual appeal but also adds a layer of protection against wear and tear. This lockset is non-handed, allowing for versatile installation on various door orientations. The Sargent 2370RX-10XG71 operates at 12 or 24 VAC/VDC with an amp draw of 250 mA at 12V or 150 mA at 24V, ensuring reliable performance in demanding environments. It also features a request-to-exit switch for added convenience. Built in the USA, this lockset exceeds ANSI/BHMA Grade 1 standards for strength and performance by up to 20 times, promising longevity and peace of mind for any commercial setting. Enjoy the assurance of a 10-year limited warranty with your purchase.
Grade 1 Elec, Fail Secure
Grade 1 Electrified Cylindrical Lock, Fail Secure, L Lever, L Rose, SFIC Prep, Disposable Core, Deadlatch, Request to Exit, 3-3/4″ Backset, Satin Chrome Finish, Non-Handed
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn’t simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them – by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Grade 1 electrified locksets that exceed standards for durability, strength and performance by as much as 20 times.
Attributes
Amp Draw: 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep, Disposable Core
Door Thickness: 1-3/4″ to 2″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 71-Electromechanical (Fail Secure)
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 1″
Lever Knob: Lever
Leverknob Design: L Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Maximum Door Thickness: 2″
Mechanical Option: Request to Exit
Minimum Door Thickness: 1-3/4″
Operating Voltage: 12 or 24 VAC/DC
Origin: United States
Pack Height: 4.25″
Pack Length: 8.25″
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13″
Product Height: 4.25″
Product Length: 8.25″
Product Width: 7.13″
Projection: 2-15/16″
Rose Escutcheon: Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 10X-Line Electrified Lever Locks
Ship Weight: 4 lbs.
Std Latch Number: Oct-00
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: Request to Exit
Type: Electric Locks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
