Description

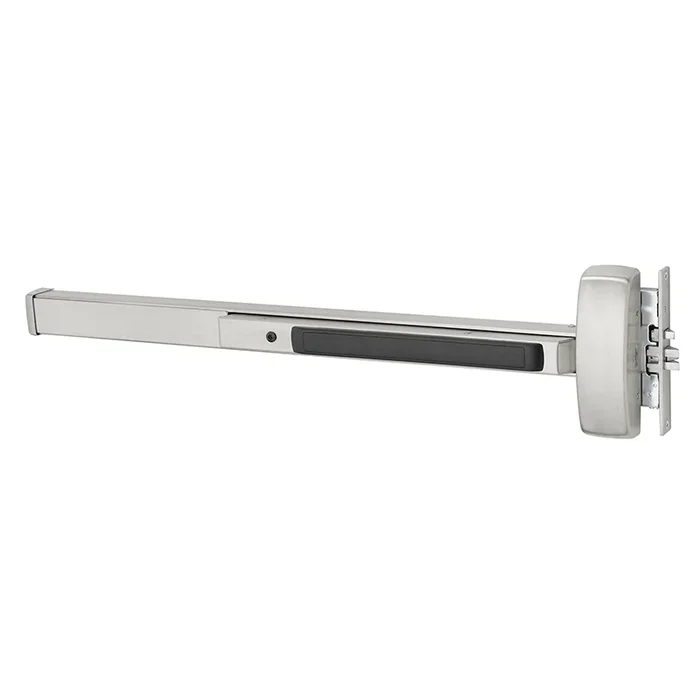

Sargent 8910F LHR 32D Mortise Exit Device – Exit Only
Sargent 8910F LHR 32D Mortise Exit Device, Exit Only offers robust security tailored for high-traffic commercial environments. This Grade 1 mortise exit device features a wide stile pushpad and a durable satin stainless steel finish, ensuring both functionality and aesthetic appeal. Designed specifically for left-hand reverse applications, it accommodates standard width stile wood and metal doors that are 1-3/4″ to 2-1/4″ thick. The 8910F model is engineered for single door applications and supports various door widths, making it versatile for different setups. With hex key dogging, this exit device enhances access control while maintaining safety compliance. Its modular construction and minimal moving parts ensure maintenance-free operation, making it a dependable choice for building professionals. Moreover, the Sargent 8900 Series devices easily meet ANSI/BHMA Grade 1 standards for cycle and strength, providing peace of mind in security. The 8910F is UL listed for safety, ensuring it meets stringent industry standards. With a limited five-year warranty and the ability to ship via UPS, this exit device stands as a reliable solution for any facility seeking superior exit hardware.
Mortise Exit Device, Exit Only
Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 36″ Device, Exit Only, Hex Key Dogging, Satin Stainless Steel Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The 8900 Series is for single door applications
8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door;Over 1-3/4″ specify thickness and order as a 31-option. 4-1/2″ (114mm) minimum stile
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Category: Mortise Panic Devices, Panic Devices, Panic Devices & Exit Alarms
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Mortise
Dogging Options: Hex Key Dogging
Door Material: Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 33″ to 36″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: No
Series: 8900 Series Mortise Exit Devices
Ship Weight: 15 lbs.
Strike Standard: C908
Subtype: Mortise Exit Devices
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
