Description

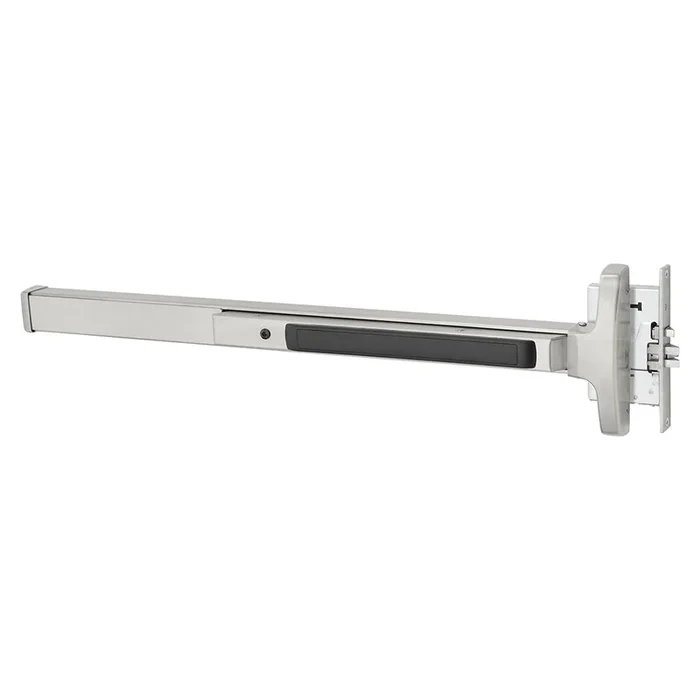

Sargent 8313F ETL RHR 32D Classroom Mortise Exit Device
Sargent 8313F ETL RHR 32D Mortise Exit Device, Classroom is a Grade 1 mortise exit device designed to provide robust security for facilities requiring reliable access solutions. Featuring a narrow stile pushpad and a sleek satin stainless steel finish, this 36-inch device is engineered for both aesthetics and functionality. The classroom function includes a lever with an escutcheon and hex key dogging, making it easy to operate while ensuring safety and compliance. Built to exceed ANSI/BHMA Grade 1 standards, the Sargent 80 Series exit devices are crafted for durability and minimal maintenance. With modular construction and fewer moving parts, these devices promise longevity, making them a smart choice for any commercial environment. The device accommodates wood or metal doors with a thickness of 1-3/4″ to 2-1/4″, and a minimum stile size of 4-1/2″, ensuring compatibility with a variety of installations. Ideal for standard width stiles, this exit device offers options for unique applications, including delayed egress and electric latch retraction. With a 5-year limited warranty, you can trust in the quality and performance of the Sargent 8313F ETL RHR 32D Mortise Exit Device. Secure your building confidently with this innovative solution.
Mortise Exit Device, Classroom
Grade 1 Mortise Exit Device, Narrow Stile Pushpad, 36″ Device, Classroom Function, L Lever with Escutcheon, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
A narrow design, push rail style, mortise lock exit device.
The 8300 Series is designed for standard width stiles with a narrow design look and is part of Sargent’s full line of exit devices. These exit devices provide the best combination of strength, simplicity, aesthetics, and innovation.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31-option. 4-1/2″ (114mm) minimum stile
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/8″ Mortise
Device Length: 36″
Device Type: Mortise
Dogging Options: Hex Key Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 33″ to 36″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: Yes
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Classroom
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Narrow Stile Pushpad
Restrictions: None
Reversible: No
Series: 8300 Series Narrow Mortise Exit Devices
Ship Weight: 18 lbs.
Strike Standard: C908
Subtype: Mortise Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 713 ETL RHRB 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 43-Flush End Cap Rail Cutting Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 56-Electric Latch Retraction Exit Device Sell Sheet
- 565 & 665 Metal End Cap Kit Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 80 Series Brochure
- 80 Series Exit Device Environmental Product Declaration
- 816 Cylinder Dogging Kit Parts List
- 8300 Series Narrow Mortise Exit Devices Cut Sheet
- AL- Alarmed Exit Device Installation Instructions
- Basic Fundamentals – Exit Devices
- Electric Dogging for 80 Series Installation Instructions
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- Windstorm Solutions – Exit Devices
