Description

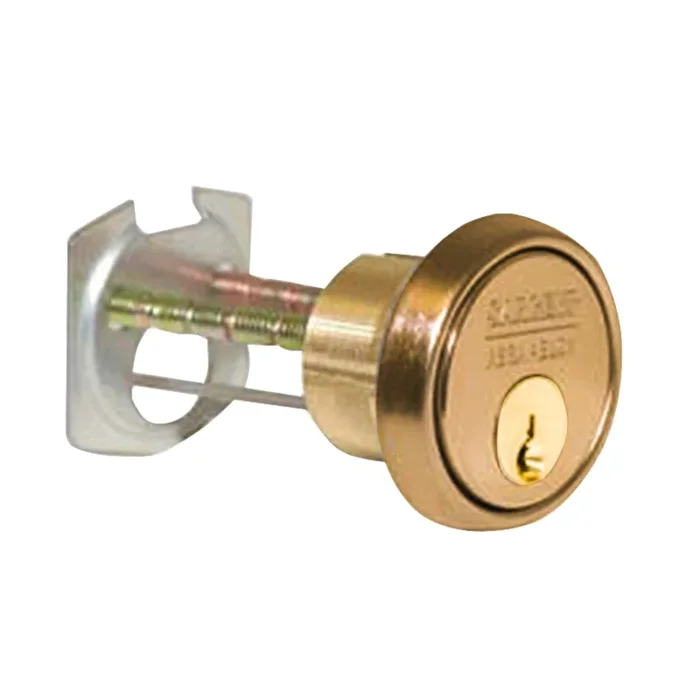

Sargent 34 LJ 10 Rim Cylinder Assembly
Sargent 34 LJ 10 Rim Cylinder offers robust security and reliability for your door hardware needs. Crafted from solid brass, this rim cylinder features a satin bronze finish that combines aesthetic appeal with durability. Designed for versatile applications, it comes standard with a number 97 rosette, compression spring, break-off screws, and a horizontal-only tailpiece. This cylinder is equipped with a standard 6-pin configuration, ensuring enhanced security while being user-friendly. Each unit is supplied with two nickel silver change keys, which are cut for immediate use. For projects requiring specific keying, Sargent provides the option for random keying, 1-bitted, or master keyed configurations-just include your keying details as per the SARGENT Keyed Order Lead Sheets. With a compact size-measuring 1.88″ in height, 4.13″ in length, and 2.38″ in width-this product is designed to fit seamlessly into your existing hardware setup. Proudly made in the USA, the Sargent 34 LJ 10 Rim Cylinder balances quality with practicality, making it an excellent choice for both building professionals and discerning homeowners looking for reliable door security solutions.
Rim Cylinder
Rim Cylinder, LJ Keyway, Satin Bronze
Sargent Rim cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring, and break off screws and tailpiece. Tailpieces are horizontal only.
All cylinders are standard 6 pin and are supplied with 2 nickel silver change keys unless noted.
Cylinders are supplied random keyed unless specified 1 bitted or master keyed. For master keyed orders provide keying details as requested on SARGENT Keyed Order Lead Sheets, located in the price book or contact customer service.
Attributes
Baa Qualified: Yes
Base Material: Bronze
Country of origin: USA
Cylinder Type: Rim Cylinder
Finish: 612/US10
Keying: Keyed Different
Keys: Cut
Of Keys: 2
Origin: USA
Pack Height: 1.88″
Pack Length: 4.13″
Pack Qty: 1
Pack Volume: 18.37 in³
Pack Width: 2.38″
Pins: 6
Series: Rim Cylinders
Ship Weight: 0.53 lbs.
Std Keyway: LJ
Subtype: Rim Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- Rim Cylinders Cut Sheet
