Description

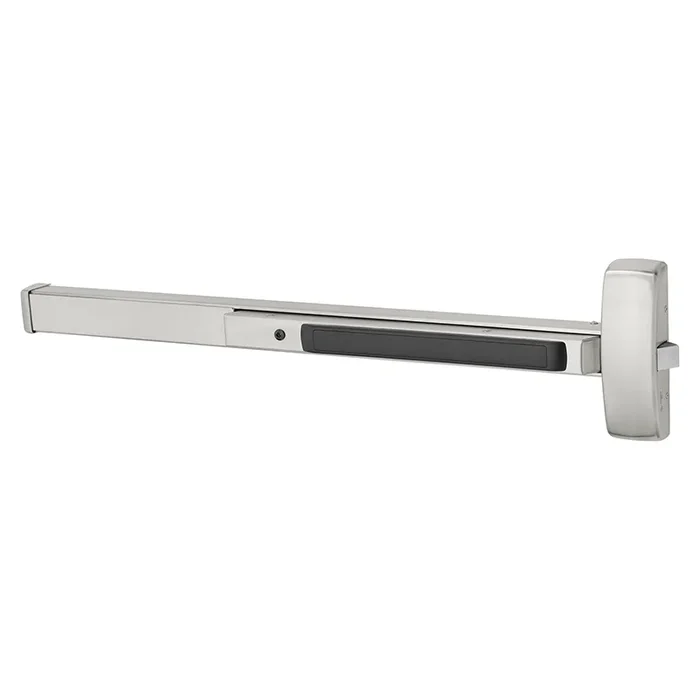

Sargent 8815F ETB LHR 32D Rim Exit Device with Passage Instructions
Sargent 8815F ETB LHR 32D Rim Exit Device, Passage offers a robust solution for commercial environments requiring reliable, secure access. Constructed to meet ANSI/BHMA Grade 1 standards, this Grade 1 Rim Exit Bar features a wide stile pushpad and a 36″ device length, ensuring easy operation while maintaining high security. The B lever with escutcheon adds an elegant touch, while hex key dogging allows for flexible use. Designed for compatibility with both wood and metal doors, the 8800 Series is ideal for single and double door applications, including those with mullions. The device operates quietly, providing peace of mind without compromising accessibility. Field reversible for ease of installation, the device accommodates door thicknesses from 1-3/4″ to 2-1/4″ and door widths ranging from 33″ to 36″.With a satin stainless steel finish (630/US32D), this exit device not only enhances the aesthetic of any entryway but also offers durability that withstands daily use. Furthermore, it is UL listed for fire and panic situations, ensuring compliance with safety regulations. Backed by a 5-year limited warranty, the Sargent 8815F ETB is a trusted choice for professionals looking for long-lasting performance and reliability.
Rim Exit Device, Passage
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Passage Function, B Lever with Escutcheon, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent’s full line of exit devices.
Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31- prefix.
Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door; G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 – Grade 1
- UL Fire and Panic listed
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 33″ to 36″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Passage
Minimum Stile Size: 4-3/4″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 8800 Series Rim Exit Devices
Ship Weight: 18 lbs.
Strike Standard: 649
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 715-8 ETB LHRB 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
