Description

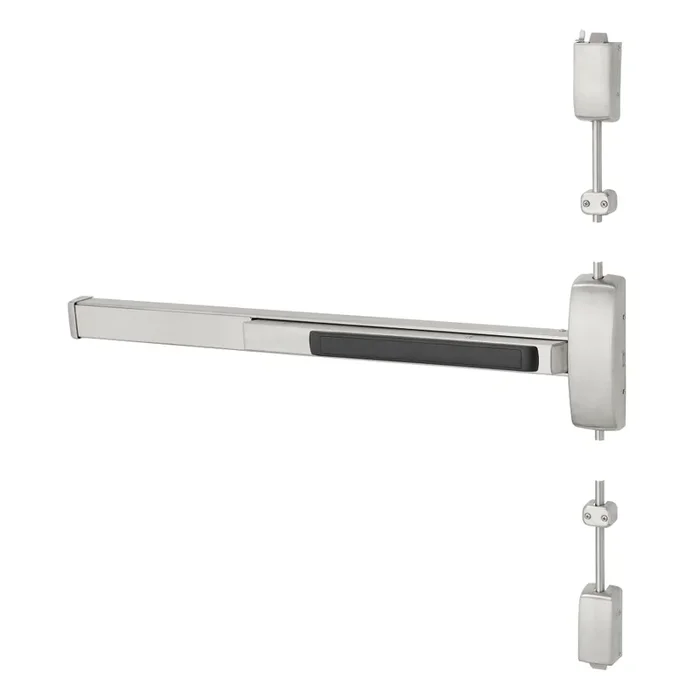

Sargent 5556-8713G RHR 32D SVR Classroom Exit Device
Sargent 5556-8713G RHR 32D SVR Exit Device, Classroom, is a Grade 1 surface vertical rod exit device designed for robust security in commercial environments. This device features a wide stile pushpad and measures 48 inches in length, making it suitable for doors up to 96 inches high. Its electric latch retraction ensures seamless operation, while the classroom function enhances security by restricting access from outside. Built with durability in mind, the Sargent 80 Series exit devices exceed ANSI/BHMA Grade 1 standards, ensuring reliable performance over time. The modular construction, combined with minimal moving parts, offers maintenance-free operation, making it a wise investment for facilities seeking long-lasting reliability. The adjustable two-point latching system provides flexibility for varied installations, accommodating door widths from 43 to 48 inches without the need for cutting. Featuring a satin stainless steel finish, this exit device not only meets aesthetic demands but also adds a layer of sophistication to any commercial setting. The Sargent 5556-8713G is designed for both wood and metal doors and is backed by a 5-year limited warranty. With its combination of simplicity, strength, and innovation, this exit device is a premier choice for ensuring safety and accessibility.
SVR Exit Device, Classroom
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 48″ Device, 96″ Door Height, Classroom Function, Electric Latch Retraction, Request to Exit Switch, Less Dogging, Satin Stainless Steel Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
Has two point latching and is adjustable through the center case.
Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 96″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 43″ to 48″
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Classroom
Minimum Stile Size: 3-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 51″
Pack Qty: 1.0
Pack Volume: 2295 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Reversible: No
Series: 8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 15 lbs.
Strike Bottom: 624.0
Subtype: Surface Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 646.0
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 12-HC8700 Top Case Parts List
- 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 43-Flush End Cap Rail Cutting Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 56-Electric Latch Retraction Exit Device Sell Sheet
- 565 & 665 Metal End Cap Kit Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- 59-8700 Surface Vertical Rod Chassis Parts List
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 80 Series Brochure
- 816 Cylinder Dogging Kit Parts List
- 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
- 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
- AL- Alarmed Exit Device Installation Instructions
- Basic Fundamentals – Exit Devices
- Electric Dogging for 80 Series Installation Instructions
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- NB-8700 ET Trim Template
- Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
- Video: 8700 Series Surface Vertical Rod Exit Device Installation
- Windstorm Solutions – Exit Devices
