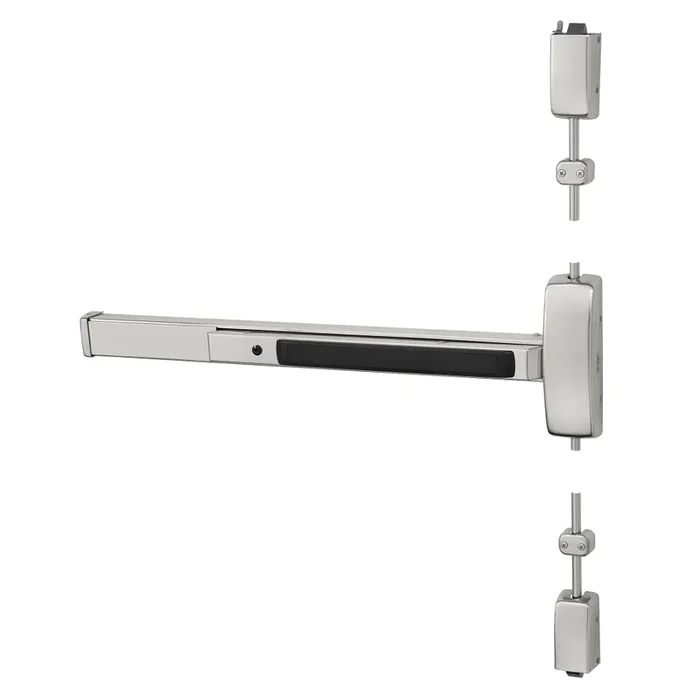

Sargent 8706F ETL LHR 32D SVR Storeroom Exit Device
Sargent 8706F ETL LHR 32D SVR Exit Device, Storeroom offers a robust security solution that excels in durability and functionality. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad and is designed for doors up to 96 inches in height. Specifically crafted for storeroom applications, it employs a left-hand reverse handing and includes a stylish lever with escutcheon for easy operation. Engineered with modular construction and minimal moving parts, the Sargent 80 Series ensures low maintenance while exceeding ANSI/BHMA Grade 1 standards for strength and longevity. The 36-inch device accommodates wood or metal doors that are 1-3/4 inches thick, with options for doors up to 2-1/4 inches thick available upon request. Two-point latching provides enhanced security, adjustable through the center case for precise alignment. With hex key dogging for added convenience, this exit device is not only compliant with ADA regulations but also suitable for various commercial environments. The satin stainless steel finish adds a modern aesthetic, ensuring it blends seamlessly with any architectural style. Choose the Sargent 8706F for an exit device that combines simplicity, strength, and innovation for your building’s safety needs.
SVR Exit Device, Storeroom
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Storeroom Function, L Lever with Escutcheon, Hex Key Dogging, Satin Stainless Steel Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
Has two point latching and is adjustable through the center case.
Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/8″ Mortise
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 96″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 33″ to 36″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: Yes
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Storeroom
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Reversible: No
Series: 8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 18 lbs.
Strike Bottom: 624.0
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 646.0
Trim Design: Lever with Escutcheon
Trim Part No: 706 ETL LHRB 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
