Name: Satin Anodized European Patch Door Kit &#8211; Without Lock by C.R. Laurence
SKU: srwiewqr10406
Availability: InStock

Description

CRL PHE1A Satin Anodized European Patch Door Kit (No Lock)

C.R. Laurence PHE1A Satin Anodized European Patch Door Kit – Without Lock offers a premium solution for those seeking to enhance their glass door installations. Designed for 3/8″ or 1/2″ (10 or 12 mm) tempered glass, this kit includes all necessary hardware to complete a single free-swinging door, excluding the glass itself.The kit features a pivot setback of 2-9/16″ (65 mm), ensuring a sleek and modern fit for any architectural design. It contains essential components such as a top door patch (PH21A), a bottom door patch (PH11C), and both top (1NT401) and bottom (1NT403) pivots. Gaskets are provided to accommodate the specified glass thickness, although the glass will need appropriate holes and notches. For added versatility, this kit is available with or without locks, allowing customization to meet your specific security needs. When utilized alongside floor closers with tapered spindles-ordered separately-this door kit excels in functionality and aesthetic appeal. Whether you’re a building professional or a discerning homeowner, the PHE1A kit delivers quality and performance, adhering to GANA guidelines for maximum door sizes. Experience the blend of style and durability with C.R. Laurence’s industry-leading solutions.

Satin Anodized European Patch Door Kit – Without Lock

For 3/8″ or 1/2″ (10 or 12 mm) Tempered Glass
Available With or Without Locks

CRL PHE1 European Patch Door Kits come with all the hardware to complete a single free-swinging door (except the glass). Pivot setback is 2-9/16″ (65 mm). Floor closers with tapered spindles (ordered separately) may be used with this Kit.

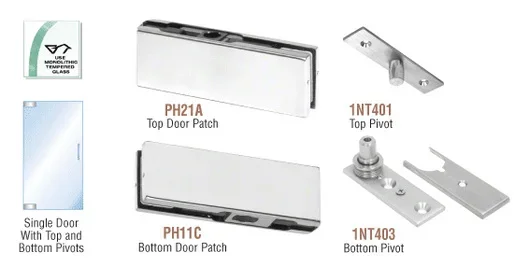

Kit Contains:

1 – PH21A Top Door Patch

1 – PH11C Bottom Door Patch

1 – 1NT401 Top Pivot

1 – 1NT403 Bottom Pivot

Gaskets for 3/8″ or 1/2″ (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)

Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
