Description

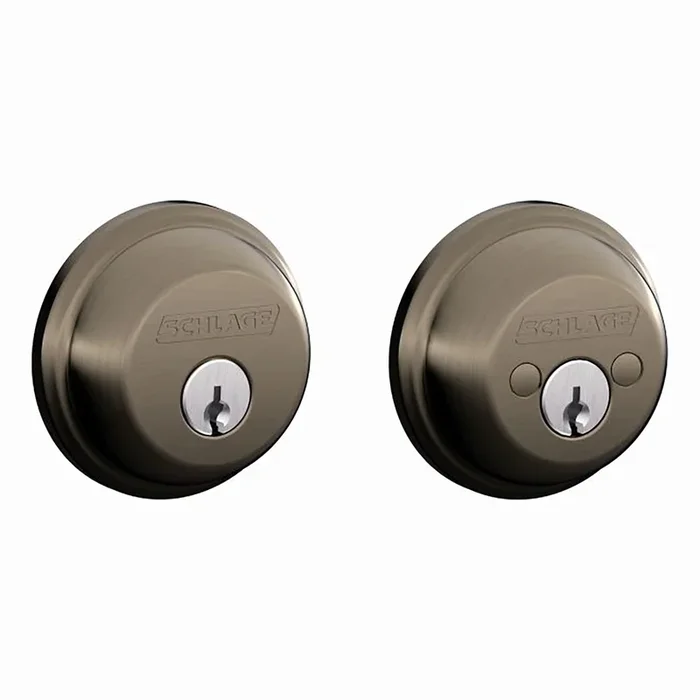

Schlage B62 620 KD Double Cylinder Deadbolt
Schlage Residential B62 620 KD Double Cylinder Deadbolt offers robust security with its Grade 1 certification, making it an ideal choice for residential single- and multi-family doors. Crafted with premium metal construction and plated keyways, this deadbolt ensures durability and reliability, backed by an exclusive patented steel strike reinforcer for enhanced strength. The B62 features a conventional 5-pin cylinder and is keyed differently, providing flexibility for diverse security needs. Its dual option latch accommodates standard door thicknesses ranging from 1-3/8″ to 1-3/4″, and it fits either a 2-3/8″ or 2-3/4″ backset, allowing for easy installation without requiring extra hands. The lock is U.L. listed for up to three-hour fire doors, ensuring safety alongside security. Available in an elegant antique pewter finish, the B62 enhances the aesthetic of any entryway. With a lifetime limited warranty, this deadbolt is not only a stylish addition but also a long-lasting investment in peace of mind. Whether you’re a building professional or a discerning homeowner, the Schlage B62 620 KD Double Cylinder Deadbolt is a dependable choice that combines style, security, and convenience seamlessly.
Double Cylinder Deadbolt
Grade 1 Double Cylinder Deadbolt Lock, Conventional Cylinder, 5 Pins, Keyed Different, Dual Option Latch, Antique Pewter Finish
With premium metal construction and plated keyways, Schlage mechanical deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.
Easy installation: One-person project; no extra hands needed.
Grade 1 certified deadbolts that feature an exclusive patented steel strike reinforcer.
- Applications: Residential single- and multi-family doors
- Certifications: Meets Grade 1 BHMA requirements
- U.L. Listed: Locks for up to three-hour fire doors available
- Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available.
- Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard.
- Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset
Attributes
Manufacturer surcharge: 6.5%
Ansi: ANSI/BHMA A156.36-2016 Commercial Grade 1
Ansi Function: E2142 – Deadlock, Double Cylinder
Bolt Projection: 1″ Deadbolt
Commercial Residential: Residential
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 620/US15A
Finish Family: Matte Silver
Function: B62-Double Cylinder Deadbolt Lock
Grade: Grade 1
Installation: Residential
Keying: Keyed Different
Keys: Cut
Limited Warranty: Lifetime
Of Keys: 2
Origin: Mexico
Pack Height: 2.86″
Pack Height 2: 6.5″
Pack Length: 5.66″
Pack Length 2: 18.3″
Pack Qty: 1
Pack Volume: 70.9 in³
Pack Volume 2: 1819.94 in³
Pack Width: 4.38″
Pack Width 2: 15.3″
Pins: 5
Product Height: 2.5″
Product Width: 2.5″
Series: B Series Residential Deadbolts
Ship Weight: 1.6 lbs.
Std Keyway: C
Std Latch Backset Dim: Adjustable 2-3/8″ and 2-3/4″
Std Latch Number: 12-321
Std Latch Type: Dual Option Latch
Std Strike Height: 2-3/4″
Std Strike Number: 10-116
Std Strike Type: Round Corner Strike with Reinforcer
Std Strike Width: 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 20
Upc Code: 43156157273
