Description

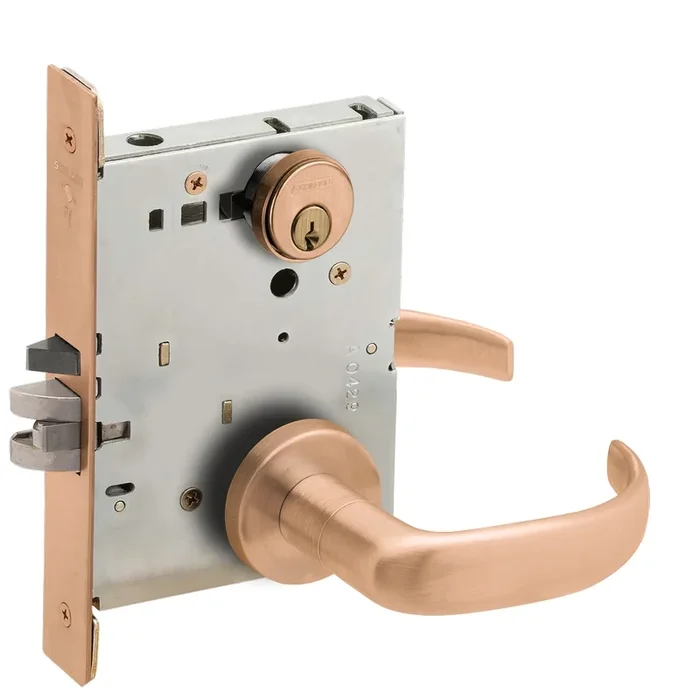

Schlage L9070P 17A 612 Lock Mortise Lock
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
- Classroom – Latchbolt Retracted from Either Side, Locked or Unlocked by Outside Key Only, Inside Always Free for Immediate Exit
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 – Classroom
Baa Qualified: Yes
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″
Burglar Rated: No
Cam Number: L583-254
Cam Type: Schlage L
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Design: 17 Lever and A Rose
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 612/US10
Finish : Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 2-3/4″
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 17 – Lever
Lever Knob Design Family: Curved Return Lever
Leverknob Design: 17 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function : Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 3″
Rose Escutcheon Design: A – Rose
Rose Escutcheon Dimensions: 2-1/8″
Rose Number: 09-404 A 612, 09-403 A 612
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8″ Diameter, 13/32″ Projection
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4″
Std Latch Number: L283-008, L283-006
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 612
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: 10-072 Strike
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
