Description

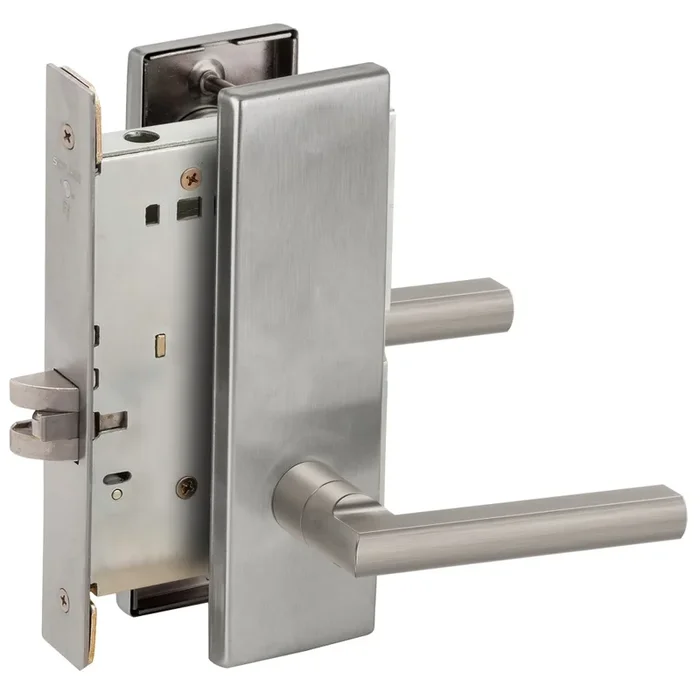

Schlage L9010 LATN 626 Lock Mortise Lock
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
- Passage – Latchbolt Retracted by Either Side at All Times
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000, Grade 1
Ansi Function: F01 – Passage
Baa Qualified: Yes
Bolt Projection: 3/4″ Latch
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Design: Lat Lever and N Escutcheon
Door Thickness: 1.75
Dust Box: K510-066
Finish: 626/US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9010-Passage Latch
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Bore Diameter: 2-3/4″
Leverknob Design: LAT – Latitude Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 3 Years
Lock Face Size: 1.25
Origin: Mexico
Pack Height: 5.5″
Pack Length: 10.25″
Pack Qty: 1
Pack Volume: 295.97 in³
Pack Width: 5.25″
Projection: 2.563″
Rose Escutcheon Design: N – Escutcheon
Roseescutcheon Design: N Escutcheon
Roseescutcheon Dimensions: 8″ x 2-9/16″ x 7/16″
Screws: C203-736
Series: L9000 Series Mortise Lock
Ship Weight: 6 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: 10-072 Strike
Strike Height: 4.875
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1.1875
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
