Description

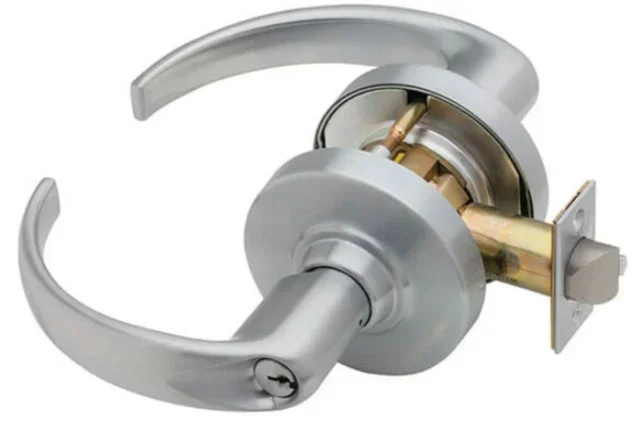

Schlage ALX53-P-SPA-626 C123 234 Sparta Lever Entry Kit, Grade 2, Key in Lever, C123 Keyway, Satin Chrome
Schlage Lock Company ALX53-P-SPA-626 C123 234 KIT offers robust security without compromising on style. This Grade 2 entry lock features the elegant Sparta lever design, complemented by a brushed satin chrome finish (626) that seamlessly fits modern aesthetics. With a 2-3/4 inch backset and ANSI strike, this lock is engineered for both durability and functionality. The ALX series is distinguished by its innovative single chassis design, allowing for versatile function setups in the field. This modular system supports a broad range of cylinder applications, including high-security Primus XP cylinders, making it an ideal choice for various locking needs. The stainless steel latch bolt and deep-drawn spindles, featuring five points of lever engagement, ensure exceptional resistance to droop and wobble. Designed for doors between 1-3/8″ and 1-3/4″ thick, this non-handed lock simplifies installation with captured screws that prevent loose parts. The field-selectable Vandlgard feature adds an extra layer of security, while the expansive lever offering allows for customization. Certified to exceed ANSI standards for strength and durability, the Schlage ALX53-P-SPA-626 C123 provides a reliable solution for commercial and residential applications alike, backed by a 10-year limited warranty.
KIT – Grade 2, Entry Sparta Lever, Key in Lever, C123 Keyway (0-Bitted Brushed Chrome Cylinder 626), 2-3/4in Backset, ANSI Strike, 626/US26D Satin Chrome
Notice: The info below is not item specific.
ALX Series is a grade 2 lock unlike any other. Designed to exceed expectations, it features a single, patent pending chassis design that supports most functions and all cylinder applications. As a modular lock, ALX series enables in-field function set up or exchange and a field-selectable Vandlgard feature on all locking functions. Exceptional durability comes from a stainless steel latch bolt and deep-drawn spindles with 5 points of lever engagement and grade 1 compression springs that prevent droop and wobble. Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security and functionality when and where you need it.
Features:
- Exceeds grade 2 strength: Stainless steel latchbolt.
- Expanded cylinder support:
- Accepts all Schlage plus five competitive cylinder formats.
- High security locking when used with Primus XP UL 437 listed cylinders.
- Maximum utility:
- One chassis fits all functions and cores to minimize inventory.
- Flexible purchase options: buy as factory configured, lock less levers, or as kits for on site configuration.
- Exceptional durability:
- Deep-drawn spindle with 5 points of lever engagement prevents droop and wobble.
- Grade 1 compression springs.
- Extreme installation simplicity:
- Accommodates 1-3/8″ to 1-3/4″ door thickness with minimal chassis adjustment.
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts.
- Function flexibility:
- Patent pending chassis design allows quick, in-field function set up.
- Field reversible Vandlgard® to non-Vandlgard locked lever engagement.
- Expansive lever offering:
- 10 total designs. (Athens, Boardwalk, Broadway, Latitude, Longitude, Omega, Rhodes, Saturn, Sparta, & Tubular.)
- Perfectly suited to Schlage ND Series grade 1 locks.
Specifications:
- Chassis Material: Steel, zinc dichromated for corrosion resistance
- Chassis Door thickness: Standard: 1 3⁄8″ to 1 3⁄4″
- Trim Handing: Non-handed
- Trim Levers: Pressure cast zinc, plated to match product finish specification
- Trim Rose: Wrought brass, bronze or zinc plated to match finish specification
- Backset:
- Standard: 2 3⁄4″
- Optional: 2 3⁄8″, 3 3⁄4″, 5″
- Faceplate:
- Standard: 1 1⁄8″ x 2 1⁄4″ square corners
- Optional: Multiple options with square or radius corners
- Latch:
- Standard: 7⁄8″ bolt diameter, up to 1″ housing diameter, 1⁄2″ throw in stainless steel
- Optional: 1″ bolt diameter with 1⁄2″ throw, 3⁄4″ anti-friction fire latch
- Strike: Standard: ANSI Curved Lip: 1 1⁄4″ x 4 7⁄8″ x 1 3⁄16″. Optional: T strike
- Keying:
- Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options designed to fit competitive cores from Sargent and Corbin Russwin.
- Keying: Standard: Everest 29 S123 patented open keyway, keyed different (KD). Optional: Classic open, Everest 29 restricted, and legacy keyways.
- Certifications: Certified A156.2-2011 series 4000, grade 2; exceeds standard for lever and spindle strength and durability
- Warranty: 10-year limited.
Lever Styles:
- ATH: Athens
- Width Dimensions: 4 9⁄16″
- Projection Dimensions: 3 5⁄16″
- BRK: Boardwalk
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3 1⁄16″
- BRW: Broadway
- Width Dimensions: 4 1⁄2″
- Projection Dimensions: 3 1⁄16″
- LAT: Latitude
- Width Dimensions: 4 1⁄2″
- Projection Dimensions: 3 1⁄8″
- LON: Longitude
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3 1⁄8″
- OME: Omega
- Width Dimensions: 5 1⁄16″
- Projection Dimensions: 3 5⁄16″
- RHO: Rhodes
- Width Dimensions: 4 9⁄16″
- Projection Dimensions: 2 15⁄16″
- SAT: Saturn
- Width Dimensions: 4 7⁄16″
- Projection Dimensions: 2 15⁄16″
- SPA: Sparta
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3 1⁄2″
- TLR: Tubular
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3″
- Rose: Standard. Diameter – 3 7⁄16″
Non-Keyed Functions:
- ALX10: Passage latch
- ANSI F75
- No key; plain lever both sides; spring latch
- Both levers always unlocked
- ALX40/ALXV40: Bath/bedroom privacy lock
- ANSI F76
- No key; emergency access coin turn outside; push button inside; spring latch
- Inside push button locks outside lever
- Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access
- Field selectable Vandlgard® feature
- Inside lever is always free for immediate egress
- ALX44/ALXV44: Hospital privacy lock
- No key; emergency turn-button outside; push button inside; spring latch
- Inside push button locks outside lever
- Turn inside lever or close door to release button and prevent lock-out; outside turn button provides emergency access
- Field selectable Vandlgard® feature
- Inside lever is always free for immediate egress
- ALX170: Single dummy trim
- No key; rigid plain lever outside; no hardware inside; no latchbolt
- Use as door pull or matching inactive trim
- Note: Not available for in-field function changes.
- ALX172: Double dummy trim
- No key; rigid, plain lever both sides; no latch
- Use as door pull or matching inactive trim
- Notes: Latch cover available. Not available for in-field function changes.
Single Cylinder Deadbolt Functions:
- ALX50/ALXV50: Entrance/office lock
- ANSI F82
- Key cylinder outside; push button inside; deadlatch
- Inside push button locks outside lever
- Unlock with key outside or by rotating inside lever
- Field selectable Vandlgard feature
- Inside lever always free for immediate egress
- ALX53/ALXV53: Entrance lock
- ANSI F109
- Key cylinder outside; push/turn button inside; deadlatch
- Inside button locks outside lever by pushing button or pushing and turning button
- Pushed button: unlock with key outside or by rotating inside lever
- Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
- Field selectable Vandlgard feature
- Inside lever always free for immediate egress
- ALX70/ALXV70: Classroom lock
- ANSI F84
- Key cylinder outside; plain lever inside; deadlatch
- Key in outside lever locks or unlocks outside lever
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
- ALX80/ALXV86: Storeroom lock
- ANSI F86
- Key cylinder outside; plain lever inside; deadlatch
- Outside lever always fixed
- Key can retract the latch
- Field selectable Vandlgard feature
- Inside lever always free for immediate egress
Conventional Cylinder:
- P6: 6-pin Conventional (standard)
- Z: SL 7-pin Conventional (A2 pinning)
- L: Less Conventional cylinder
- L-C06: Less cylinder, made to fit Corbin 2000-033
- L-SAR: Less cylinder, made to fit Sargent C11-1, C10-1
Full Size Interchangeable Core (FSIC):
- R: 6-pin FSIC (full size)
- M: SL 7-pin FSIC (A2 pinning)
- J: Less FSIC
- J-C06: Less FSIC, made to fit Corbin 8000
- J-C07: Less FSIC, made to fit Corbin 8000-7
- J-SAR: Less FSIC, made to fit Sargent 6300
- T: Refundable construction FSIC
Small Format Interchangeable Core (SFIC):
- G7: 7-pin SFIC (slide capping)
- B: Less SFIC
- BDC: Disposable construction SFIC
- H: Refundable construction SFIC
Finishes:
- 605/US3 – Bright brass
- 606/US4 – Satin brass
- 612/US10 – Satin bronze
- 613/US10B – Oil rubbed bronze
- 619/US15 – Satin nickel
- 622/US19 – Matte black
- 625/US26 – Bright chrome
- 626/US26D – Satin chrome
- 626AM – Satin chrome, antimicrobial
- 643e – Aged bronze
Attributes
Alternate Codes: ALX53-P-SPA-626 C123 234, ALX53P-SPA626 C123 234, ALX53PSPA626C123234, SCHALX53P-SPA626 C123 234
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Cylinder Type: 6-Pin Cylinder, Conventional – Schlage, Keyed 5
Door Application: Cylindrical Levers
Door Thickness: 1-3/8″-1-3/4″
Faceplate Style: Square Corner
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Entry
Handing: Non-Handed
Keying: 0-Bitted
Keyway: Schlage C123
Keyway Brand: Schlage
Lever Design: Sparta
Manufacturer: Schlage Lock Company
Series: ALX
