Description

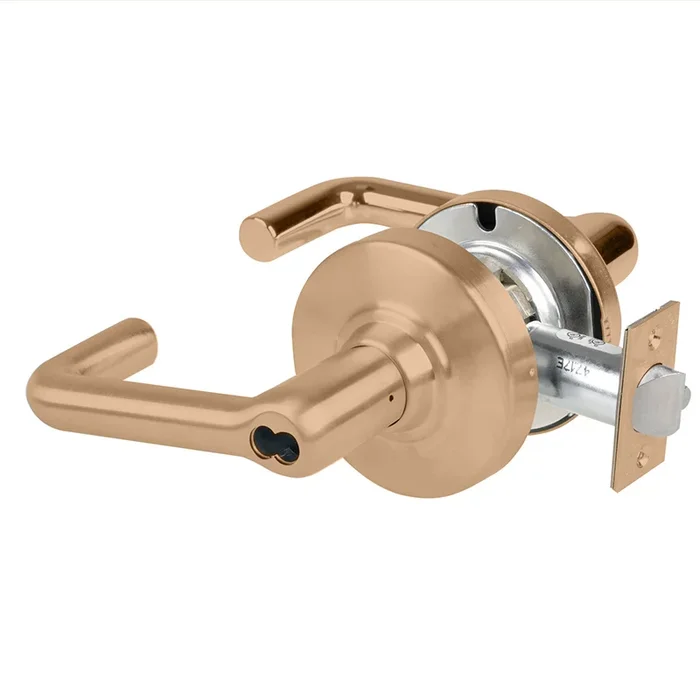

Schlage ALX80J TLR 612 Lock Cylindrical Lock
- Storeroom – Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked
- ANSI/BHMA Certified A156.2
- 1-3/8″ to 1-3/4″ Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F86 – Storeroom
Backset: 2-3/4″ Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder
Design: Tubular Lever
Door Thickness: 1-3/8 In. – 1-3/4 In.
Dust Box: None
Finish: 612/US10
Finish : Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Number: 47267042
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: TLR – Tubular
Lever Knob Design Name: Tubular
Leverknob Design: TLR – Tubular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom Lock
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
Origin: Mexico
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Pbs Options: 4540298
Pins: 6
Product Height: 4.5″
Product Length: 9.25″
Product Width: 8.13″
Projection: 3 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: RHO – Rhodes
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ASA
Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Unit of Measure: Each
Resources
- ALX Configure Chart
- ALX Cylinders and Keyways Reference Guide
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Series Cut Sheet
- ALX Series Lever Locks Cut Sheet
- ALX Series Product Catalog
- ALX Series Service Manual
- Schlage ALX Series Installation Instructions
- Schlage ALX Series Sell Sheet
- Von Duprin Finishes Chart
