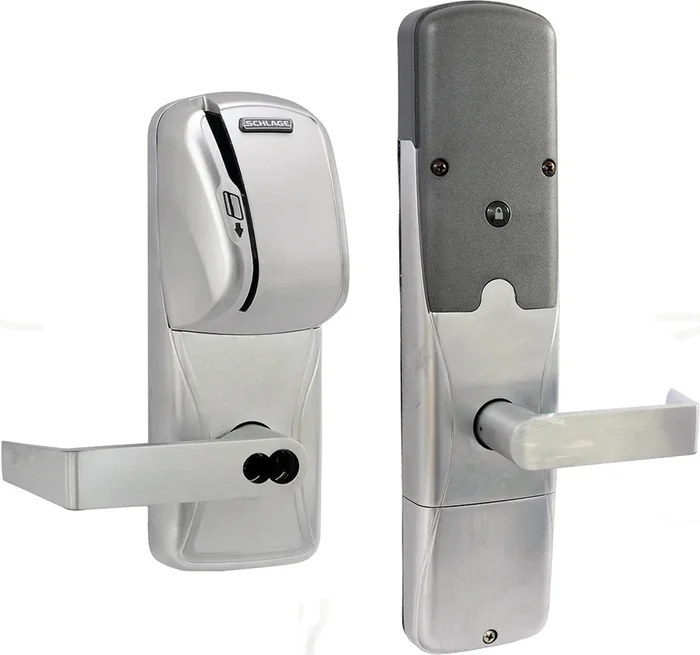

Schlage AD400-CY40MS-RHO626-RD C Magnetic Stripe Wireless Privacy Lock, Rhodes Lever, Grade 1, Satin Chrome
Schlage Electronic Security AD400-CY40MS-RHO626-RD C KIT is a state-of-the-art magnetic stripe network wireless privacy cylindrical lock designed for modern access control needs. Featuring the Rhodes lever and a Schlage Full Size IC core, this lock offers exceptional security with a Grade 1 rating, ensuring top-tier performance in any commercial application. The AD400’s modular design enhances flexibility, allowing customization to meet specific security requirements while maintaining compatibility with existing systems. Its integrated features include a credential reader and various sensors, all housed in a single unit for simplified installation. The wireless capability allows for secure locking in challenging locations without the need for extensive wiring, promoting ease of use and efficiency. Key features include multi-technology credential compatibility, secure encrypted data transmission, and a communication range of up to 200 feet with obstructions. The lock’s battery life can last up to two years, and its non-invasive installation is ideal for sensitive environments. Additional accessories are available for enhanced functionality in diverse situations. With its sleek satin chrome finish and solid construction, the Schlage AD400-CY40MS-RHO626-RD C KIT combines aesthetic appeal with robust security, making it a reliable choice for any facility seeking advanced access control solutions.
KIT – Magnetic Stripe (Swipe Card) Network Wireless Privacy, Cylindrical Lock, Rhodes Lever, FSIC (Schlage Full Size IC), Core Included, C Keyway (1-Bitted Brushed Chrome Cylinder 626), 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock, and more compatibility with existing access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and changed to meet future needs without removing it from the door. To simplify installation, the AD series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit, and request-to-enter sensors, door position switch, tamper switch, and more. The AD-400 wireless networked lock gives you many of the key benefits of a hardwired access control system—without the wires. This allows you to secure doors that were traditionally difficult to run wires to in the past and increase the security throughout your facility.
Features:
- Open architecture platform – integrated into most popular physical access control systems through our PACS Alliance program
- Multi-technology credential compatibility includes Schlage MiFare, NFC mobile, and proximity
- Optional support for HID smart and NFC mobile credentials
- Panel interface options ensure seamless communication with the access control system
- Secure encrypted data transmission
- Unique communication protocols won’t interfere with other wireless networks
- ‘Wake up on Radio’ feature enables centralized lockdown in less than 10 seconds while still optimizing battery life up to 2 years
- Non-invasive wireless installation for historic buildings and sensitive areas
- Wireless accessories available for remote, gate, elevator, and portable or temporary (mustering) applications
AD-400 Electronic Lock Specifications:
- Modulation: 900 MHz spread spectrum, direct sequence, 10 channels
- Frequency range: 902-928 MHz
- Transmission/encryption: AES-128 bit key
- Credential verification time: < 1 second
- Wake-Up on Radio: Responds to lock/unlock command from host in less than 10 seconds in battery powered applications (per field configuration)
- Communication range: Up to 200 ft with obstructions (normal building construction), up to 1000 ft clear line of sight
- RF interference avoidance: Configurable dynamic channel switching
- Data rate: RF: 40 kbps
- Visual/audible communications: Tri-colored LED’s and audible indicators (field configurable)
- System interface: RS-485, Wiegand, or Clock & Data via PIM400 to host
- Power supply: 4AA, 8AA, 12 VDC or 24 VDC
- Voltage range: 4 VDC to 26 VDC
- Max current requirement: Up to 250 mA
- Battery life: Up to 2 yrs with 4AA
- Operating temperature: exterior 31° to 151°F (-35° to 66&edg;C)
- Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
- Operating humidity: 0 – 100% non-condensing
- Certifications: ANSI/BHMA A156.25, ANSI/BHMA grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
- Accessories: Panel interface module (PIM400), handheld device (HHD), remote antennas for PIM400 to extend range, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)
Mechanical Specifications:
- Handing: Handed to order, field reversible
- ANSI standard (meets or exceeds):
- Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
- Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
- Exit Trim: A156.25 locked outdoor A156.3 grade 1
- Door Thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
- Backset:
- Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
- Mortise: 2-3⁄4″ only
- Latch Bolt:
- Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
- Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
- Levers: Pressure cast zinc, plated
- Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″
- Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.
Functions:
- 40: Privacy
- 50: Office/classroom
- 60: Apartment
- 70: Storeroom
Reader:
- KP: Keypad
- MG: Magnetic stripe (insertion)
- MGK: Magnetic stripe + keypad (insertion)
- MS: Magnetic stripe (swipe)
- MSK: Magnetic stripe + keypad (swipe)
- MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
- MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
- FMK: FIPS 201-1 compliant multi-technology + keypad (125 kHz and 13.56 MHz)
- Si: HID support
- SiK: HID support + keypad
- DT: Dummy trim
Chassis:
- CY: Cylindrical
- MS: Mortise
- MD: Mortise deadbolt
- 993R: Exit trim – Rim/CVC/CVR
- 993S: Exit trim – SVR
- 993M: Exit trim – mortise
- 993DT: Non-functioning dummy trim for exit
Levers:
- ATH: Athens
- BRK: Boardwalk
- BRW: Broadway
- LAT: Latitude
- LON: Longitude
- RHO: Rhodes
- SPA: Sparta
- TLR: Tubular
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 643e – Aged bronze
- 626AM – Satin chrome antimicrobial
Attributes
Access Type: Magnetic Stripe, Networked, Wireless
Alternate Codes: AD400-CY40MS-RHO626-RD, AD400CY40MSRHO626RD, AD400-CY40MS-RHO626-RD C, AD400CY40MSRHO626RDC
Category: Access Control, Wireless, Wireless Locks
Cylinder Type: 6-Pin, FSIC – Schlage
Door Application: Commercial Electric Locks
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Door Thickness: 1-3/4″
Finish Code: 626
Finish Color: Satin Chrome
Function: Privacy
Grade: Grade 1
Keyway: Schlage C
Lever Design: Rhodes
Lock Category: Cylindrical Lockset – Lever
Manufacturer: Schlage Electronic Security
Power Supply Type: Battery, Dual Voltage
Series: AD Networked
Voltage: 12, 24
Voltage Type: VDC – Direct
