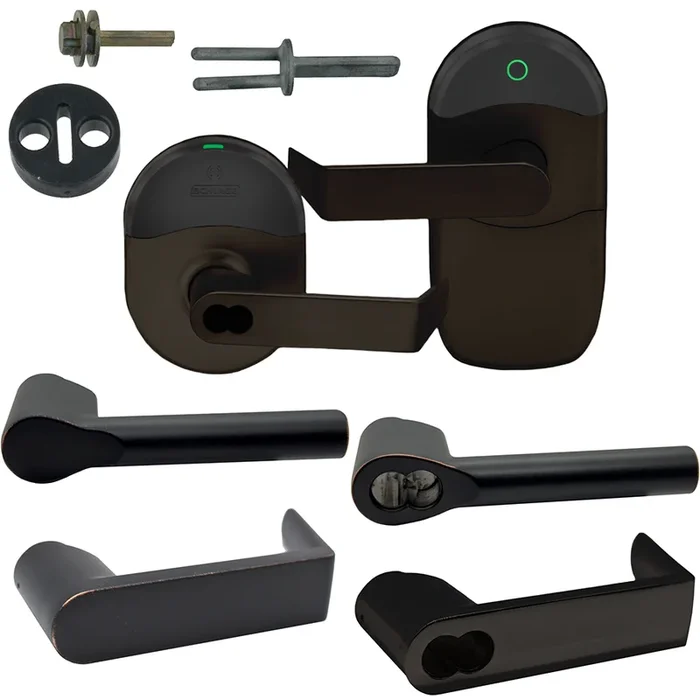

Schlage NDEB-BD-BRW-643E KIT – Mobile Wireless Cylindrical Lock, 125kHz Proximity, Bluetooth, Grade 1
Schlage Electronic Security NDEB-BD-BRW-643E KIT is a mobile-enabled wireless cylindrical lock designed to enhance electronic access control seamlessly throughout your building. This innovative lock combines a credential reader, door position sensor, and request-to-exit switch in one unit, simplifying installation and reducing wiring needs. With compatibility for up to 5,000 users and the ability to store 2,000 audit trails, it’s an ideal solution for offices, conference rooms, and sensitive storage areas. Utilizing multi-technology credentials, the NDE supports Schlage MiFare, Bluetooth, NFC mobile, and proximity options, ensuring versatility for your security needs. The built-in Wi-Fi allows for automated daily updates, while connectivity options like Bluetooth and the Engage Gateway facilitate real-time communication. Additionally, the lock features a weather-resistant design, field-reversible handing, and up to two years of battery life using four AA batteries. Constructed to meet ANSI/BHMA Grade 1 standards, this lock fits standard mechanical ND door prep with minimal modifications. The Schlage Broadway lever adds an elegant touch, and the aged bronze finish complements various environments. Upgrade your facility’s security with the Schlage NDEB-BD-BRW-643E KIT, where modern technology meets reliable protection.
KIT – Mobile Enabled Wireless Cylindrical Lock, 125khz Proximity, 13.56MHz Smart, 2.4GHz Bluetooth Low Energy Reader, SFIC (Small Format IC), Less Core, Broadway Lever, 5000 Users, 2000 Audits, 2-3/4in Backset, ANSI Strike, Grade 1, 643E/US11P Aged Bronze
Notice: The info below is not item specific.
The NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings and offers users the security and convenience of using a smart device to gain access. NDE wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit, eliminating the need to install additional components or run wires to each opening. The open architecture design of NDE allows it to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS Alliance program. This enables customers to choose the system that best fits their requirements now and transition to another solution at any time. NDE suites with all Schlage ND levers and keyways to provide attractive options to meet the requirements of nearly any environment.
Features:
- NDE includes interior push button with indication for storeroom, office, privacy, and apartment applications
- Standard multi-technology credential compatibility includes Schlage MiFare, Bluetooth and NFC mobile, and proximity
- Optional support for HID smart and NFC mobile credentials
- Wireless configuration from connected smartphones and tablets
- Built-in Wi-Fi enables automated daily updates sent directly from host software
- Networked real-time communication available with the Engage Gateway and PACS provider solutions
- Ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas
- Fits mechanical ND door prep with minor modifications
- Weather resistant design
- Lever handing is field reversible in seconds; no tools required
- Up to 2 years of battery life
NDE Wireless Lock Specifications:
- Users: Up to 5,000
- Audits: Up to 2,000
- Credential Verification Time: Smart and proximity: ≤ 1 second Mobile: mobile device dependent
- Visual Communications: LED (red, amber, green)
- Audible Communications: Audible indicator (field configurable)
- Communication Standards:
- 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
- WPA2, WPA, WEP, 802.1x
- Bluetooth low energy (version 4.2)
- Transport Layer Security (TLS) version 1.2
- Advanced Encryption Standard (AES), 256-bit
- Gateway Communication Range: Up to 30′ in typical building environments. A detailed site survey is recommended using the Engage Test Kit (TKE).
- Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires PACS provider system)
- Data Rate: 54 Mbps
- Connectivity Options:
- Bluetooth via mobile device (send updates at the lock)
- Wi-Fi access point (automatic daily updates)
- No-Tour
- ENGAGE Gateway (real-time communication) – RS-485 to ACP or IP to host
- Battery Life: Uses 4 AA batteries, Up to 2 years
- Operating Temperature:
- Exterior: -31° to 151°F (-35° to 66°C)
- Exterior: -13° to 151°F (-25° to 66°C) (NDEBSi)
- Interior: 32° to 120°F (0° to 49°C) (battery)
- Operating Humidity: 0 – 100% non-condensing
Specifications:
- Chassis: Cylindrical
- Handing: Right-handed from factory. Field reversible in seconds (no tools required)
- ANSI standard (Meets or exceeds): ANSI/BHMA A156.25-2013 (indoor/outdoor). ANSI/BHMA A156.2-2011, series 4000, grade 1
- Door Thickness: Standard: 1 5⁄8″ – 2″ (41mm – 51mm) only
- Backset: Standard: 2 3⁄4″ (70mm). Optional: 2 3⁄8″ (60mm)
- Latch Bolt: Standard: 1⁄2″ (12mm) throw deadlatch (steel). Optional: 3⁄4″ (19mm) throw anti-friction deadlatch available for pairs of fire doors
- Levers: Pressure cast zinc, plated
- Strike: Standard: 1 3⁄16″ lip, ANSI, DPS, 1 1⁄4″ x 4″. Optional: Additional strikes, lip lengths and ANSI strike box available
- Cylinder and Keys: Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys. Additional keying options available, including interchangeable cores, competitor brands, master keying and grand master keying
Levers:
- ATH: Athens
- BRK: Boardwalk
- BRW: Broadway
- LAT: Latitude
- LON: Longitude
- OME: Omega
- RHO: Rhodes
- SPA: Sparta
- TLR: Tubular
Available Status Signals:
- Request-to-exit
- Door position
- Interior cover tamper
- Magnetic tamper
- Battery status
- Lock/unlock status
- Communication status
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 643e – Aged bronze
- 619 – Satin nickel
- 622 – Matte black
- 625 – Bright chrome
- 626 – Satin chrome
- 626AM – Satin chrome with antimicrobial
Attributes
Alternate Codes: NDEB-BD-BRW-643E, NDEBBDBRW643E
Backset: 2-3/4″
Battery Type: 4x, AA
Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks
Certifications: ANSI, BHMA
Communication Technology: Mobile Enabled
Cylinder Type: Less Core, SFIC
Door Application: Commercial Electric Locks
Door Thickness: 1-5/8″-2″
Finish Code: 643E
Finish Color: Aged Bronze, Venetian Bronze
Function: Apartment, Office, Privacy, Storeroom
Grade: Grade 1
Latchbolt Type: Deadlatch
Lever Design: Schlage Broadway
Lock Category: Cylindrical Lockset – Lever
Manufacturer: Schlage Electronic Security
Power Supply Type: Battery
Series: NDE Mobile Enabled
Strike Lip Length: 1-3/16″
Strike Type: ANSI Strike
