Description

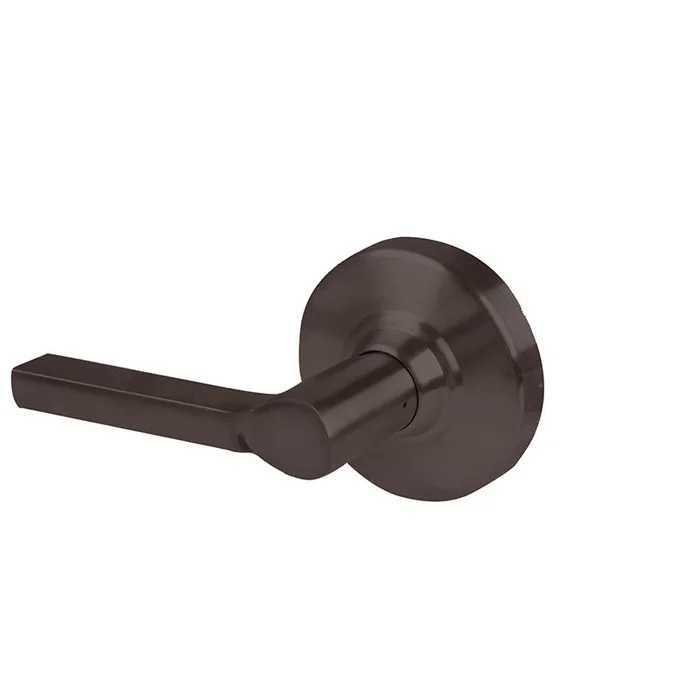

Schlage ND170LAT613 ND Series Single Dummy Latitude – Oil Rubbed Bronze Finish
Schlage Commercial ND170LAT613 ND Series Single Dummy Latitude in Oil Rubbed Bronze Finish offers an exceptional blend of style and functionality, ideal for both commercial and residential applications. This single dummy lockset features a sleek Latitude lever design that adds a contemporary touch to any door. With a 3-7/16″ rose and a 4-1/2″ lever, it ensures an elegant appearance while providing a comfortable grip. Constructed from durable zinc base material, the ND170LAT613 is built to withstand the rigors of daily use. Its reversible handing allows for versatile installation on either left or right-hand doors, accommodating various architectural needs. The lockset is UL Listed for 3 Hour Fire Door compliance, ensuring safety without compromising aesthetics. This model is part of the ND Series, known for its reliability and robust performance. It comes with a 3-Year Limited Mechanical Warranty and a 1-Year Limited Electromechanical Warranty, offering reassurance about its quality and longevity. The oil rubbed bronze finish not only enhances the visual appeal but also provides a level of corrosion resistance. Whether you’re upgrading existing hardware or outfitting a new space, the Schlage Commercial ND170LAT613 is a reliable choice that combines modern design with practical utility.
ND Series Single Dummy Latitude Oil Rubbed Bronze Finish
- Single Dummy Trim, Dummy Trim for One Side of Door, Used for Door Pull or As Matching Inactive Trim
- ANSI/BHMA Certified A156.2-2011
- 1-5/8″ to 2-1/8″ Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Latitude
Dimension: 3-7/16″ Rose with 4-1/2″ Lever and 3-1/8″ Projection
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish : Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 170-Single Dummy
Function Family: Dummy
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: LAT – Latitude
Lever Knob Design Name: Latitude
Leverknob Design: LAT – Latitude Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Product Height: 3.44″
Projection: 3-1/8 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series
Ship Weight: 5 lbs.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
