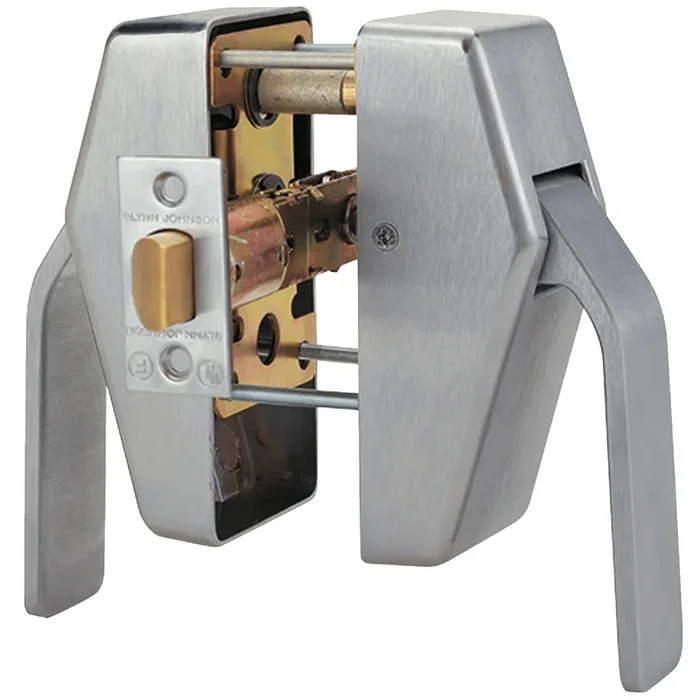

Schlage HL6-2 630 A Push-Pull 2-3/4″ Backset 32D
Schlage HL6-2 630 A Push Pull is a premium hospital push/pull tubular latch designed to enhance accessibility and functionality in healthcare settings. With a passage function and a 2-3/4″ backset, this latch is engineered for ease of operation, even when hands are full. Its satin stainless steel finish not only imparts a modern aesthetic but also ensures durability in high-traffic areas. This innovative latch features dampened paddle action, significantly reducing noise associated with hardware operation. In fact, the HL Series delivers a remarkable 50% quieter paddle operation compared to previous models, making it an ideal choice for environments where operational noise can disrupt patient care and staff efficiency. It is particularly suitable for healthcare areas where patients are resting, workspaces demanding concentration, busy hallways, and quiet zones like chapels or auditoriums. The HL6-2 is constructed with a spring latch (unguarded) and is compatible with ANSI strikes, ensuring reliable performance. Its dimensions include a lock face size of 2-1/4″ x 1-1/8″ and it accommodates door thicknesses of 1-3/4″. Choose Schlage HL6-2 for a blend of functionality and noise reduction, tailored specifically for demanding institutional applications.
PUSH PULL 2-3/4IN BACKSET 32D
Hospital Push/Pull Tubular Latch, Passage Function, 2-3/4″ Backset, ASA Strike, Spring Latch (Unguarded), Satin Stainless Steel
Push/Pull Latch, 2-3/4″ Backset, ANSI Strike, Satin Stainless Steel
Quiet hospital push/pull hardware.
The HL Series includes a full line of push/pull hardware that is ideal forhealthcare and other institutional applications where ease of operation isneeded – even when hands are not free.Delivering both superior quality and exceptional performance, the HL Seriesoffers a wide variety of popular finishes and configurations providing theflexibility needed to meet the most demanding door control applications.
Hospitals and other healthcare environments have special requirements fornoise reduction to help patients heal faster and staff perform moreaccurately and efficiently.There are many sources of noise, but choosing quiet door hardware can helpreduce excess noise and create quieter environments. The newly redesignedHL Series quiet hospital push/pull hardware offers a proven 50% quieterpaddle operation than our previous product, providing healthcareorganizations a reliable solution for noise reduction initiatives.
- Dampened paddle action – depression and snap back – reduces noiseassociated with hardware operation
- Proven 50% quieter paddle operation – both in the pull and pushdirection – than our previous solution
- Comes standard on all HL Series hardware
Applications
Anywhere operational noise is disruptive:
- Healthcare areas where patients are sleeping and healing
- Work spaces where concentration is important
- Busy traffic areas such as hallways
- Chapels or auditoriums where noise can be disturbing
- Office or administrative areas
Attributes
Manufacturer surcharge: 4.5%
Bolt Projection: 1/2 In.
Commercial Residential: Commercial
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: 630/US32D
Function: HL6-Passage
Installation: Commercial
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Pack Qty: 1
Pbs Options: 198928231
Series: HL Series Hospital Latches
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 800108
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 890022
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Hospital Push/Pull Latch
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Upc: 43156620814
Resources
- HL Series Hospital Latches Cut Sheet
- Von Duprin Finishes Chart
