Description

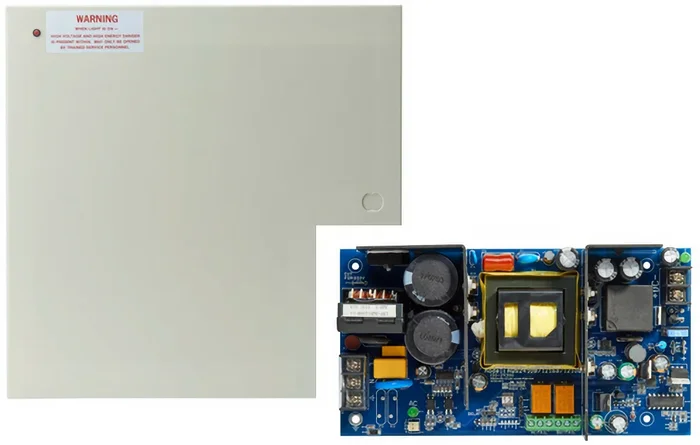

Securitron AQS1216-16F2 Kit – Power Supply 12vdc 16a 16 Outputs
AQS1216 Series of switching power supplies are single voltage, UL listed, supervised units. Units are field selectable with integrated battery charger. They provide 16A at 12vDC, with up to 16 independently controlled power limited outputs.
Attributes
Alternate Codes: AQS1216-16F2, AQS121616F2
Amperage: 16 Amp
Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies
Depth: 4.75
Distribution Board Quanity: 2 Distribution Boards
Door Application: Power Supplies
Fire Alarm Interface: No
Fuse Rating [ Amp]: 2
Fuse Type: Glass fuse
Height: 14
Maximum Operating Temperature (° F): 122
Minimum Operating Temperature (° F): -4
Monitoring Options: Yes
Number of Outputs: 16
Number of Relays: 0
Output Amps: 16
Output Voltage: 12.5/25
Power Supply Type: Switching
Type: ACCESS CONTROL
Voltage: 12
Width: 14
Resources
- Cut Sheet
- Cut Sheet
- Securitron AQ Series Power Supplies Sell Sheet
- Securitron AQD and AQS Power Supplies Brochure
- Securitron AQS Power Supplies Operating Manual
