Description

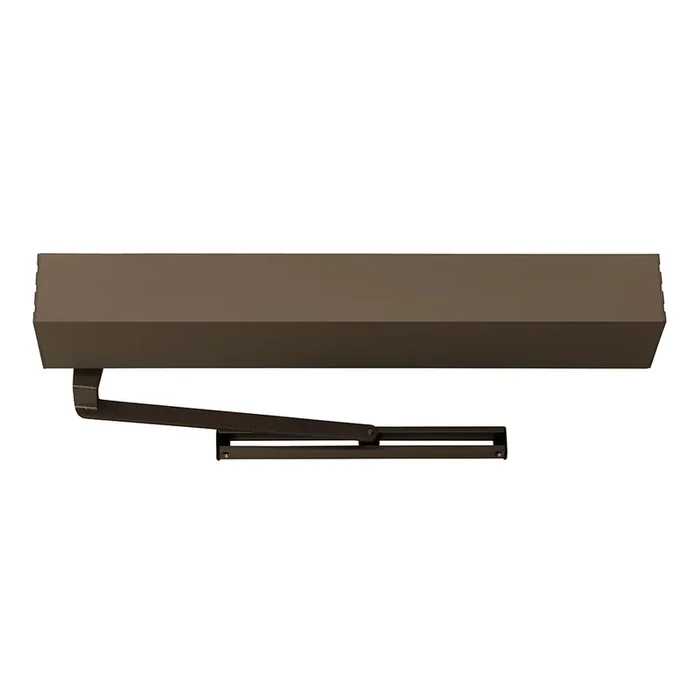

LCN 9531-STD 36 LH 710 SeniorSwing AutoOperator ANDKB
LCN 9531-STD 36 LH 710 SeniorSwing AutoOperator ANDKB is a Grade 1 surface-mounted electromechanical door operator designed to provide seamless accessibility. This innovative operator features a 36″ header and a standard slide track arm, making it ideal for doors ranging from 33″ to 48″ wide. With its ability to swing open 90 degrees, it ensures ease of entry for all users, including those relying on wheelchairs. The unique two-in-one functionality allows for both automatic operation, meeting ADA compliance, and manual use for pedestrian access, enhancing its versatility in various commercial settings. Constructed from durable dark bronze anodized aluminum, the operator not only delivers reliability but also complements modern architectural aesthetics. Installation is straightforward, as the LCN 9531-STD comes complete with a motor gearbox, control box, standard arm, header, and all necessary mounting hardware. Its adjustable hold-open period, ranging from 2 to 32 seconds, adds convenience for high-traffic areas. Additionally, the left-handed design ensures compatibility with specific door configurations. With a maximum door weight capacity of 400 lbs., this operator is built to withstand rigorous use while providing a smooth, user-friendly experience. Enhance your building’s accessibility with the LCN 9531-STD SeniorSwing AutoOperator.
SeniorSwing AutoOperator ANDKB
Grade 1 Surface Mounted Electromechanical Senior Swing Door Operator, 36″ Header, Slide Track Arm Standard, Pull Side Mounted, 33″ – 48″ Door, 90 Deg. Swing, Machine Screws, Dark Bronze Anodized Aluminum Finish, Left Handed
The 9530 Senior Swing by LCN is an ADA door operator that is a two in one swing door operator. The Senior Swing operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.
he 9530 Senior Swing Series by LCN is an ADA door operator that is a two-in-one swing door operator.
The 9530 Series is a Senior Swing operator, which meanswhen activated itopens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.
- 9530 series operator is shipped with motor gearbox, control box, standard arm, header, and mounting hardware. Actuators available separately
- Single door, surface mounted.
- Meets ADA requirements (power mode only).
- Handed product.
- 36” header length is standard. Specify length 33” to 49” max.
- Double door header available up to 98”, specify other length 49” to 98” max. Consult factory regarding this option.
- Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19
Arm Type: Slide Track Arm, Standard
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Aluminum
Bracket: Included
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Degree Hold Open: 90 Deg.
Degree Swing: 90 Deg.
Delay: Yes
Door Size: 33″ to 48″
Door Weight: 400 lbs.
Finish: 313
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 2 Years
Mounting Group: Electromechanical
Mounting Location: Pull Side
Mounting Style: Offset
Origin: USA
Pack Height: 16″
Pack Length: 23″
Pack Qty: 1
Pack Volume: 4048 in³
Pack Width: 11″
Physically Handicapp: Yes
Reveal Size: Up to 4″
Screw Type: Machine
Series: 9530 Series Electromechanical Senior Swing Operators
Ship Weight: 78 lbs.
Subtype: Door Operators
Type: Surface
Ul Listing: UL325/228, UL1998
Unit of Measure: Each
Resources
- 9530 Series Electromechanical Senior Swing Operators Cut Sheet
- Choosing the Right LCN Auto Operator
- LCN 2800 Series Installation Instructions
- LCN 2800 Series Senior Swing Control Box Installation Instructions
- LCN 4840 Series Product Guide – Automatic Operators
- LCN Auto Operators Catalog
- LCN Electromechanical Auto Operator Series Product Guide
- LCN Electromechanical Automatic Operators Data Sheet
- LCN Senior Swing Installation Video
- Von Duprin Finishes Chart
