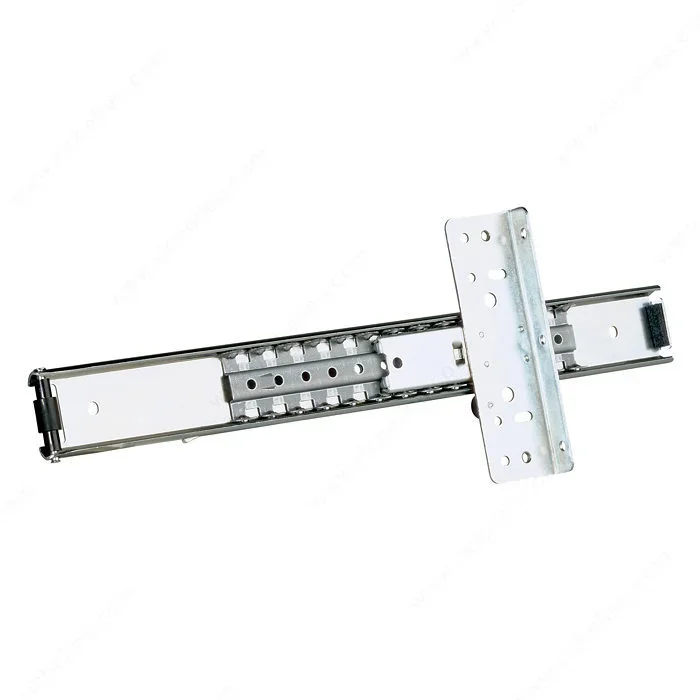

Richelieu 1172G20DO 1172 Flipper Door Slide Instructions
Richelieu 1172G20DO Series 1172 Flipper Door Slide offers an innovative solution for both commercial and residential applications, combining functionality and style. Designed to accommodate doors with a thickness ranging from 3/4″ to 15/16″, this flipper door slide can support a maximum door width of 36″ and a load capacity of 25 lb. per pair (11 kg), making it suitable for a variety of settings. The slide features a unique design that allows for a reduced door gap, achieving a seamless look. An optional hold-out mechanism enhances usability, ensuring that your doors remain securely in place. Constructed with steel ball bearings, the smooth action of the slide provides reliable performance while minimizing wear over time.The mounting is done on the side, and the zinc finish adds durability while complementing various interior styles. With a 1/3 inch extension and retractable slide mounting, this product is adaptable for pocket door installations, making it a versatile choice for any renovation or new build project.Please note that hinges are not included with this product. Elevate your door system with the Richelieu 1172G20DO, where quality meets practicality in every detail.
Series 1172 Flipper Door Slide
– Applications: Commercial, residential
– Features: Door gap can be reduced to 0; optional hold-out
– Mounting: Side
– Capacity: 25 lb. per pair (11 kg)
– Maximum door width: 36″
– Action: Steel ball bearings
– Door thickness: 3/4″ to 15/16″
NOTE: Hinges not included.
Attributes
Additional Information: With Detent
Application: Pocket Door
Bearing Type: Ball Bearing
Brand: Accuride
Extension: 1/3 in
Finish: Zinc
Length: 20 in
Load Capacity: 24.3 lb*
Material: Metal
Motion Technology: Tilt Track
Product #: 1172G20DO
Side: Both
Slide Mounted: Retractable
