Description

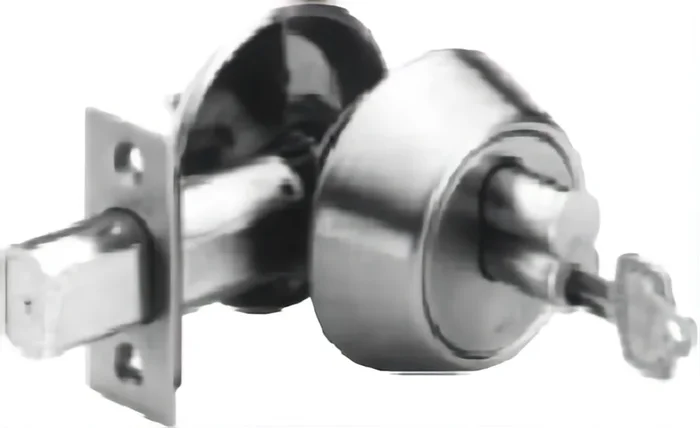

Marks Hardware 130RM/32D-4 SFIC Double Cylinder Deadbolt, Small Format IC, Grade 1, 2-3/4in Backset
Marks Hardware 130RM/32D-4 SFIC Double Cylinder Deadbolt is a premier security solution crafted for both commercial and residential applications. This Grade 1 deadbolt features a robust 1-inch throw bolt, ensuring superior strength and reliability. Designed with a 2-3/4-inch backset, it accommodates door thicknesses ranging from 1-3/8 inches to 1-7/8 inches, making it versatile for various installations. This deadbolt accepts a wide range of high-security cylinders, including Medeco, Kaba, and ASSA, as well as conventional cylinders, providing you with flexibility in your security setup. The tapered cylinder collars add an extra layer of protection against break-in attempts, while the steel shutter system effectively conceals mounting screws when the door is locked, enhancing security. The Marks Hardware 130RM/32D-4 comes with a satin stainless steel finish (630/US32D) that not only adds to its aesthetic appeal but also ensures durability and resistance to corrosion. The unitized assembly is designed for a 2-1/8-inch bore, simplifying the installation process. Additionally, this deadbolt is UL fire rated for up to 3 hours, ensuring peace of mind in case of emergencies. Elevate your security with the Marks Hardware 130RM/32D-4, where quality meets reliability.
SFIC Double Cylinder Deadbolt, Small Format IC, Less Cores, 2-3/4in Backset, Grade 1, 630/US32D Stainless Steel
Notice: The info below is not item specific.
Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.
Features:
- Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
- Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
- Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
- IC core models for “Best” size cores
- Accepts most manufactures conventional cylinders
- Unitized assemblies for 2-1/8″ bore
- Tapered cylinder collars prevent (break in attempts by) wrenching
- Steel shutter system eliminates access to mounting screws when door is locked.
Specifications:
- Bolt: 1″ throw
- Strike: #1335, 2-3/4″ x 1-1/8″ strike
- Door thickness: 1-3/8″ to 1-7/8″
- Cylinder: Marks “C” keyway, 6 pin w/ 2 keys
- Backset: 2-3/8″
- Latch front: 1″ x 2-1/4″
Functions:
- K: Cylinder x turnpiece
- L: Communicating single cylinder
- M: Double cylinder
- S: Classroom
- X: Turnpiece x blank plate
Finishes:
- 3 – Bright brass
- 32D – Stainless steel
- 10B – Dark bronze
Attributes
Alternate Codes: 112246, 112862, 130RM/32D-4, 130RM32D4
Backset: 2-3/4″
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Double Cylinder, Double Cylinder (Commercial), Lock Sets
Certifications: A156.5, ANSI
Cylinder Type: Marks Conventional
Door Application: Deadbolts
Door Bore Prep: Deadbolt Lockset 2.125in Prep
Door Thickness: 1-3/8″-1-7/8″
Faceplate Height: 2-1/4″
Faceplate Width: 1-1/8″
Finish Code: 630
Finish Color: Satin Stainless Steel
Function: Double Cylinder
Grade: Grade 1
Keyway: Marks C
Latchbolt Type: Deadbolt
Manufacturer: Marks USA
Strike Type: Standard
Throw: 1″
Resources
- Cut Sheet
