Description

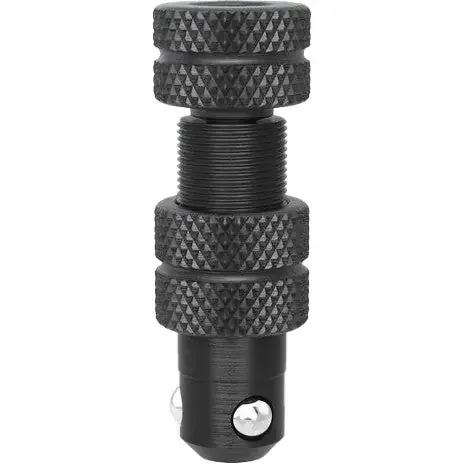

Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.
The clamping height is individually adjusted by a rotating a knurled thimble ring.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Suitable for aluminum profiles.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:
– Item No. 2-160571
– Burnished
– For Clamping 2 Siegmund Components
– Clamping Dimension is 12-24mm
– With Screw Top
– Length: 78 mm (3″)
– Diameter: 16 mm (0.63″)
– Shearing Force: 55 kN
– Tightening Torque Steel: 10 Nm
– Tightening Torque Aluminum: 2.5 Nm
– Tensile Force: 10 kN
– Weight: 0.29 lbs.
