Description

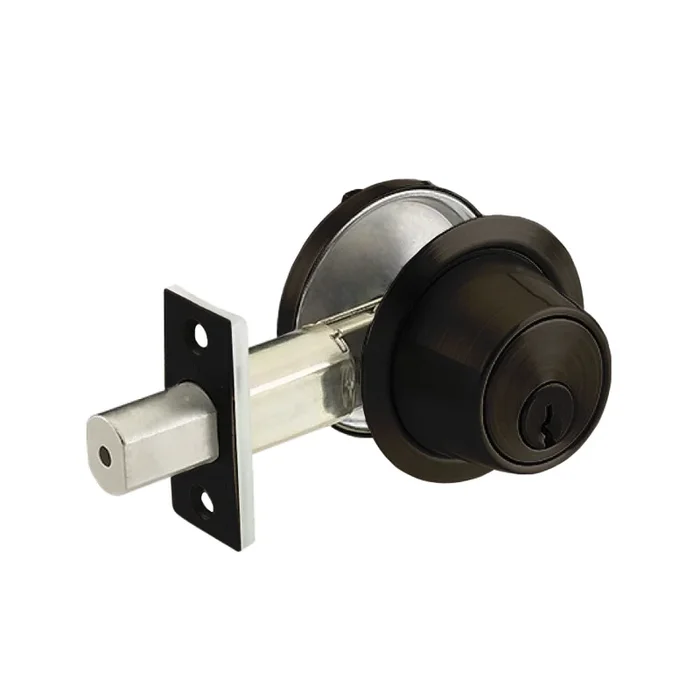

Cal-Royal CB160-US10B Grade 2 Single Cylinder Deadbolt, 6-Pin Schlage C, Oil Rubbed Bronze, KD
Cal Royal CB160-US10B Single Cylinder Deadbolt offers robust security for both residential and commercial applications. This Grade 2 deadbolt features a durable construction, designed to withstand daily use while providing peace of mind. The 6-pin Schlage C keyway ensures compatibility with a wide range of key systems, enhancing its versatility. Designed for adjustable backsets of 2-3/8 inches to 2-3/4 inches, this deadbolt fits door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, making it a flexible choice for various installations. The standard 2-1/4 inch x 1 inch faceplate comes with a plastic filler to accommodate different door preparations, ensuring a seamless fit. The bolt is automatically deadlocked when fully thrown, providing an additional layer of security. With a bore diameter of 1-1/2 inches or 2-1/8 inches for the lock housing and a square corner strike plate measuring 1-1/8 inches x 2-3/4 inches, this deadbolt is engineered for reliability and ease of installation. Finished in elegant oil-rubbed bronze, the CB160 not only enhances security but also adds a touch of sophistication to any door. Ideal for professionals and homeowners alike, this deadbolt combines functionality with style, ensuring your property remains secure.
Single Cylinder Deadbolt, Grade 2, 6-Pin Schlage C Keyway KD, Adjustable 2-3/8in-2-3/4in Backset, 613/US10B Oil Rubbed Bronze
Notice: The info below is not item specific.
Specifications:
- Trim: Wrought Brass or Stainless Steel
- Door Ranges: Adjustable 1-3/8″ (35mm) to 1-3/4″ (45mm) door thickness.
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Deadbolt Faceplate: Standard 2-1/4″ x 1″ packed with 1/8″ plastic filler to convert 1″ face plate to 1-1/8″ wide door preparations.
- Bore Diameter: 1″ for latch, 1-1/2″ or 2-1/8″ for lock housing.
- Strike: 1-1/8″ x 2-3/4″ Square Corner.
- Keyways: Standard 6-pin solid brass “C” keyway. Optional Schlage C-K composite with “E” keys, Schlage “E”, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
Functions:
- CB160: Heavy Duty Single Cylinder Deadbolt. Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.
- CB162: Heavy Duty Double Cylinder Deadbolt. Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
- GL160: Single Cylinder Gate Latch (2-3/8″ Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
- GL162: Double Cylinder Gate Latch (2-3/8″ Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.
- GL160/234: Single Cylinder Gate Latch (2-3/4″ Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
- GL162/234: Double Cylinder Gate Latch (2-3/4″ Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.
Finishes:
- 605/US3 Polished Brass
- 606/US4 Satin Brass
- 609/US5 Antique Brass
- 612/US10 Satin Bronze
- 613/US10B Oil Rubbed Bronze
- 619/US15 Satin Nickel
- 625/US26 Bright Chrome
- 626/US26D Satin Chrome
Features
- Trim: Wrought Brass or Stainless Steel
- Bore Diameter: 1″ for latch, 1-1/2″ or 2-1/8″ for lock housing.
- Door Ranges: Adjustable 1-3/8″ (35mm) to 1-3/4″ (45mm) door thickness.
- Deadbolt Faceplate: Standard 2-1/4″ x 1″ packed with 1/8″ plastic filler to convert 1″ face plate to 1-1/8″ wide door preparations.
- Strike: 1-1/8″ x 2-3/4″ Square Corner.
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Keyways: Standard 6-pin solid brass “C” keyway. Optional Schlage C-K composite with “E” keys, Schlage “E”, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
Attributes
Alternate Codes: CALCB160-10B, CB160-10B, CB16010B, CB160-US10B, CB160US10B
Backset: 2-3/4″, 2-3/8″
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Single Cylinder, Single Cylinder (Commercial)
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Door Bore Size: 2-1/8″
Door Thickness Max: 1-3/4″
Door Thickness Min: 1-3/8″
Finish: Oil Rubbed Bronze
Finish Code: US10B
Function: Single Cylinder Deadbolt
Grade: Grade 2
Handing: Non-Handed
Keyway: Cal Royal C
Knob/ Lever Style: Inside Thumbturn
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4″ x 1″
Latch Bolt Throw: 1″
Latch Bolt Type: Deadbolt
Lock Category: Cylindrical Lock
Rose/ Escutcheon Size: 2-1/2″
Rose/ Escutcheon Style: Adapter Ring
Series: CB160 Series
Strike Size: 2-3/4″ x 1-1/8″
