Description

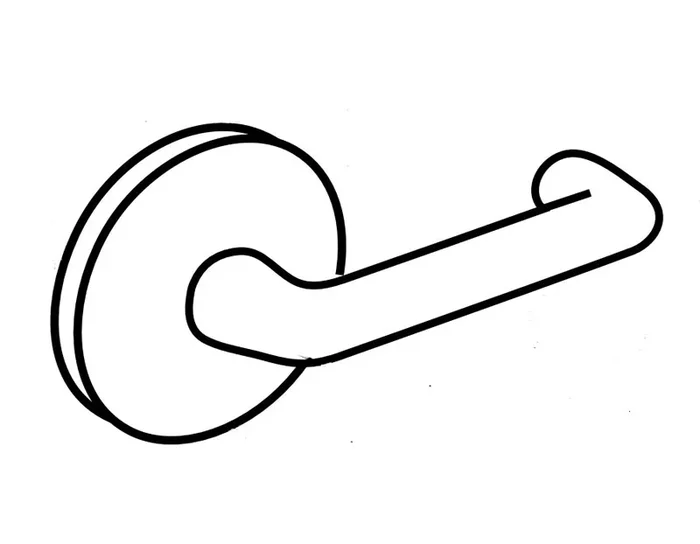

Corbin Russwin ML2054LWA626 Single Cylinder Mortise Lock, Lustra Lever, Satin Chrome, L4 Keyway
Corbin Russwin ML2054LWA626 Single Cylinder Entry Mortise Lock combines security and style, making it an ideal choice for commercial applications. This lockset features a robust satin chrome finish that not only enhances aesthetic appeal but also provides durability against wear and tarnish. Designed for doors measuring 1-3/4″ thick, it includes a 2-3/4″ backset, ensuring a secure fit for various entry points. The lockset comes equipped with the elegant Lustra lever and an A Rose escutcheon design, providing a modern touch to any door. With a 6-pin L4 keyway, it offers reliable access control while the ANSI straight lip strike ensures compatibility with standard door frames. The latch faceplate measures 1-1/4″ x 8″, complemented by a strike dimension of 1-1/4″ x 4-7/8″, promoting seamless operation. This entry lock is part of the ML2000 Series and is backed by a limited 10-year warranty, reflecting Corbin Russwin’s commitment to quality and reliability. Certified under UL and cUL for positive pressure, this mortise lockset guarantees safety and security in high-traffic environments. Whether for new installations or replacements, the Corbin Russwin ML2054LWA626 stands out as a premier choice for discerning professionals.
Single Cylinder Entry Mortise Lock with Wrought Lustra Lever and A Rose L4 Keyway Satin Chrome Finish
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F04 – Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt
Bolt Protection: 3/4″ Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional Cylinder
Design: Wrought Lustra Lever and A Rose
Dimension: 5-1/8″ Lever with 2-1/2″ Projection and 2-1/4″ Rose
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Finish: Satin Chrome
Finish Code: 626
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 54-Entrance or Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: LW – Lustra
Leverknob Design: LW – Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: Limited 10 Year Warranty
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Rose Escutcheon Design: A – Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series
Std Keyway: L4
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL – UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
