Description

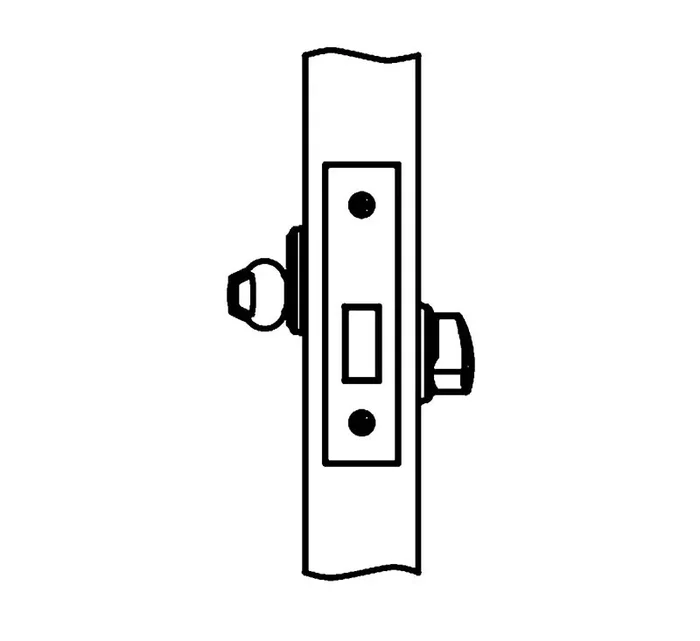

Corbin Russwin DL4113626 Single Cylinder Mortise Deadlock L4 Keyway Satin Chrome
Corbin Russwin DL4113626 Single Cylinder Mortise Deadlock L4 Keyway Satin Chrome Finish offers exceptional security and durability for commercial and institutional facilities. Crafted with a laminated stacked steel deadbolt, this deadlock ensures robust protection against unauthorized access while maintaining compliance with UL 10C standards for fire safety. Designed for versatility, this non-handed lock features a field-reversible mechanism, simplifying installation for various door configurations. The DL4113626 is compatible with doors ranging from 1-3/4″ thick and comes with a standard 2-3/4″ backset, making it an ideal choice for a wide array of applications. The elegant satin chrome finish not only enhances the aesthetic appeal but also provides resilience against wear. The deadlock is equipped with a 6-pin L4 keyway, ensuring a reliable locking mechanism while allowing for easy key duplication. Additionally, it features a deadbolt strike dimension of 1-1/8″ x 2-3/4″ and a latch faceplate dimension of 1-1/8″ x 2-1/4″, ensuring a secure fit. Backed by a limited 1-year warranty, the Corbin Russwin DL4113626 is a trusted solution for those seeking high-quality mechanical commercial locksets.
Single Cylinder Mortise Deadlock L4 Keyway Satin Chrome Finish
Since the early 1800’s, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
- Laminated stacked steel deadbolt
- Trade Agreement Act (TAA)
- Field reversible for easy installation
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblie
- Non Handed
Attributes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 1 In.
Bolt Protection: 1 In.
Burglar Rated: No
Category: Mechanical Commercial Locksets
Crossbore Size: 2-1/8″ Bore
Cylinder Type: Conventional Cylinder
Door Range: 1-3/4″
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish : Bright Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 13-Single Cylinder Deadbolt
Hand: Not Handed
Handing: Not Handed
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: L4
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Latch Type: Deadbolt
Limited Warranty: 1 Year
Manufacturer Warranty: Limited 1 Year Warranty
Material: Die Cast Zinc
No Of Inners: 1
No Of Pins: 6 Pin
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
PO date: 2024-11-19
Pack Height: 2.5″
Pack Length: 6″
Pack Qty: 1
Pack Volume: 63.75 in³
Pack Width: 4.25″
Pins: 6
Screws: Combination
Series: DL4100 Series
Ship Weight: 1.6 lbs.
Std Keyway: L4
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Deadbolt
Std Strike Height: 3-1/2 In.
Std Strike Type: Flat
Std Strike Width: 1-1/8 In.
Strike: Deadbolt Strike
Strike Dimension: 1-1/8″ x 2-3/4″
Strike Height: 3-1/2 In.
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL10B / UL10C Fire Rated
Unit of Measure: Each
