Description

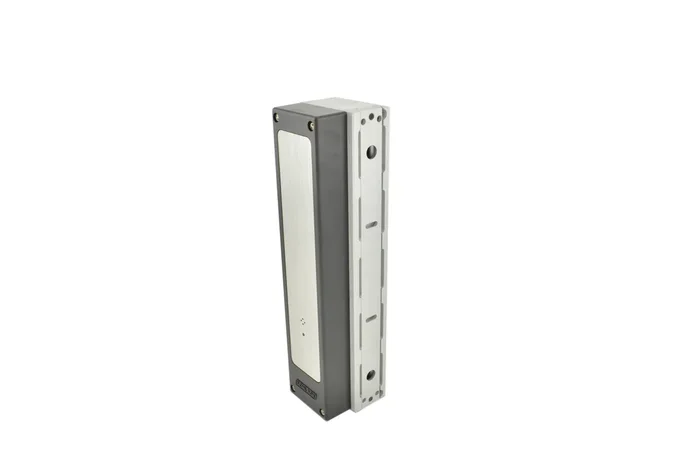

Schlage M490DE Delayed Egress Magnetic Lock Instructions
Schlage Electronics M490DE Single Delayed Egress Magnetic Lock offers robust security tailored for commercial environments. Designed with a formidable 1500 lb. hold force rating, this magnetic lock is ideal for maximum security applications, ensuring that your premises remain secure when it matters most. The M490DE features advanced capabilities, including a magnetic bond sensor (MBS), adjustable relock time delay (RTD), and a door position switch (DPS) in its “Plus” models, enhancing its effectiveness in controlling access. Automatic voltage selection (AVS) allows for seamless operation across varying electrical setups, making it versatile for different installations. Installation is simplified thanks to a unique bayonet mount design, which eliminates the need for overhead support during setup. Its symmetrical design with field-selectable handing ensures optimal placement on doors with a thickness of 1-3/4″.Constructed from durable aluminum, the M490DE is built to withstand the test of time while meeting safety standards with UL 10C and cUL listings. With a limited lifetime warranty on the magnetic components and a one-year warranty on electro-mechanical parts, this lock provides peace of mind for building professionals and homeowners alike. Choose Schlage for security solutions that embody strength and reliability.
Single Delayed Egress Magnetic Lock
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Symmetrical design with field-selectable handing for optimum placement
- 1500 lb. hold force rating for maximum security applications
- “Plus” models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
- Automatic voltage selection (AVS)
- Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
Attributes
Manufacturer surcharge: 7.0%
Amp Draw: 750/450mA @ 12/24 VDC Current
Base Material: Aluminum
Base Series: M400 Series
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Dimension: 3″ x 12-1/2″ x 1-3/4″
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Finish : Satin Aluminum
Finish Family: Matte Silver
Fire Rated: No
Function: Delayed Egress Single Door
Hazardous Material: NO
Holding Force: 1500 Lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 12-1/2″ x 3″ x 3-1/16″
Manufacturer Warranty: Limited Lifetime Magnetic and 1 Year Electro Mechanical Warranty
Material: Aluminum
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
PO date: 2024-09-30
Pack Qty: 1
Power Supply: Wired
Product Height: 3″
Product Length: 12.5″
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 3.06″
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 16 lbs.
Subcategory: Maglocks
Subtype: Maglock
Switch Type: Door Position Switch
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C 3 hr fire rating, UL 294
Ul Listing Type: UL 10C Listed, cUL
Unit of Measure: Each
Use With: Maximum Security Delayed Egress
