Description

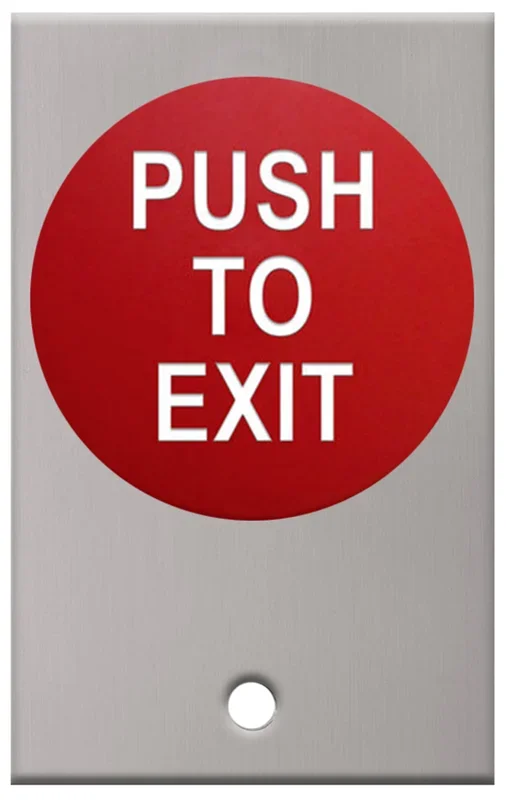

Camden CM-5085PTE-R Single Gang-DPST 1-60 Second Pneumatic Red
Camden Door Controls CM-5085PTE-R Single Gang-DPST 1-60 Second Pneumatic Red push button is engineered for durability and ease of use in demanding exit control applications. This heavy-duty switch features a large, easy-to-operate red button with a generous 2 3/8″ diameter, making it suitable for high-traffic environments. The button is mounted on a robust 1/4″ thick brushed aluminum plate, ensuring longevity and stability, regardless of whether it’s installed indoors or outdoors. The switch operates on a versatile modular design, allowing for stackable contact blocks that can control up to six distinct functions simultaneously. Its configurations include spring return, push/pull, or push/turn to release operations, making it adaptable for various applications such as controlling automatic doors, electric locks, and handicap operators. The unit is UL/CSA approved, rated for 6 amps @ 30 VDC, and features a temperature range from -13°F to 158°F.Designed with safety and accessibility in mind, this push button meets ADA requirements and comes with vandal-resistant features, including a free-spinning button and tamper-proof screws. Installation is quick and straightforward, making the Camden CM-5085PTE-R a reliable choice for both commercial and residential settings.
Single Gang-DPST 1-60 Second Pneumatic Red
Notice: The info below is not item specific.
5000 Series of push switches are heavy duty pushbuttons, specially designed and manufactured to meet the stringent demands of exit controls. Buttons are available in either green, red, or blue, 2 3/8″ diameter. They are supplied with a 1/4″ thick brushed aluminum plate in 2 3/4″ width. Optional duranodic finish (US 40) is also available. No set screws are required, due to the bayonet interlocking of the modular assembly. Buttons are free spinning, for additional protection against vandalism. The switches are UL/CSA approved, rated at 6 amps @ 30 VDC. The design of the Camden push button is modular, so that the contact block switches can be stacked to control up to six distinct functions simultaneously. They can be configured for either spring return (momentary), push / pull (maintained), or push/turn to release (maintained) operation. Optional 1-60 second pneumatic timer. Pneumatic timer features 6 amps @ 30 VDC form Z (N/O and N/C) contacts. Push switches are designed to control overhead doors, electric locks, electro-magnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and other applications. The switches are made for high frequency usage, in an indoor or outdoor environment. Push switches are versatile, and are supplied in various configurations to suit commercial, industrial and residential applications.
Features:
- Large easy to operate red, green or blue buttons.
- 2-3/8″ (60MM) Diameter.
- Meets ADA requirements.
- Mounted on heavy 1/4″ thick aluminum plate.
- Indoor or outdoor applications.
- Door frame, wall & pedestal mountings.
- Spring return, push/pull, or push/turn operation.
- Large engraved symbols or words.
- Vandal & tamper resistant.
- Free spinning button cannot be unscrewed.
- Tamper proof screws provided.
- Stackable contacts can control 6 distinct functions.
- UL/CSA Approved switches rated 6 Amps @ 30V DC.
- Color coded 18 AWG spade connections.
- Fast and easy to install
Specifications:
- Voltage: 12/24 VDC.
- Current Rating: 6 A @ 30 VDC.
- Temp Range: – 13°F to 158°F (- 25°C to 75°C).
- Switch Life: 100,000 cycles.
Optional Faceplate Graphics:
- /3: ‘Push to open’
- /3F: ‘Poussez pour ouvrir’
- /3S: ‘Empuje para abrir’
- /7: ‘Push to exit’
- /7F: ‘Poussez pour sortir’
- /8: ‘Push to lock’
Optional Button Graphics:
- ‘E’: For ‘exit‘
- ‘S’: For ‘Sortie‘
- ‘ES’: For ‘exit/Sortie‘
- ‘SA’: For ‘Salida‘
- ‘ESA’: For ‘exit/Salida‘
- ‘H’: For wheelchair logo
Optional Colors:
- ‘R’: Red button
- ‘G’: Green button
- ‘B’: Blue button
Attributes
Alternate Codes: CAMCM5085RPTE, CM-5085PTE-R, CM5085PTER, CM5085RPTE
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
