Description

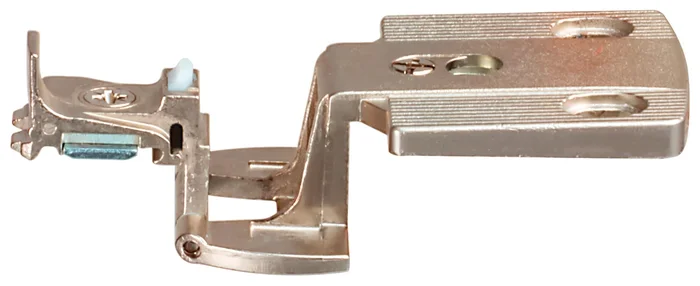

Hafele 344.06.930 Aximat 300 Grade 1 Single Pivot Hinge Arm, 270 Opening Angle
Hafele 344.06.930 Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1, Opening Angle 270 offers a sleek and sophisticated design ideal for modern cabinetry. The hinge features a full overlay finish in a stylish matte nickel, ensuring that only 5 mm (3/16″) of the knuckle is visible, which enhances the aesthetic of your storage spaces. Designed for single cabinets and storage walls, this hinge provides an impressive opening angle of 270°, allowing for easy access to the contents of your cabinets. Installation is straightforward, requiring cup drilling with a depth of 13.00 mm and a diameter of 35.00 mm. The hinge is engineered to lie directly against the door, offering rapid and precise height adjustment, which is crucial for maintaining alignment and functionality. An integrated catch keeps the doors securely closed without the need for additional magnetic catches, simplifying the overall design. For versatility, a twin-mounted version is available, allowing for the mounting of two doors on a single hinge attached to one side panel. Please note that #6 wood screws for hinge attachment are not included, and installation of a safety screw in the arm is required. Tested in accordance with ANSI/BHMA Grade 1 standards, this hinge combines durability with design.
Aximat – Single Pivot Institutional Hinge Arm, 300, Grade 1, Opening Angle 270
Matt nickel, full overlay
Sleek sophisticated design, only 5 mm (3/16″) of knuckle is visible Integrated catch keeps doors closed, no additional magnetic catches required #6 wood screws for hinge attachment are not included Tested in accordance with ANSI/BHMA Grade 1 standards
Side adjustement, hinge lies directly against the door. Rapid and precise height adjustment of door.
Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel
Installation of safety screw in arm is required.
Attributes
Area of application: For single cabinets and storage walls
Concealed hinge version: full overlay
Cup drilling depth: 13.00 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: with cup drilling
Opening angle: 270°
Order reference: #6 wood screws for hinge attachment are not included
Resources
- Aximat 300 Hinge Test Report
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.5
- Technical data sheet
