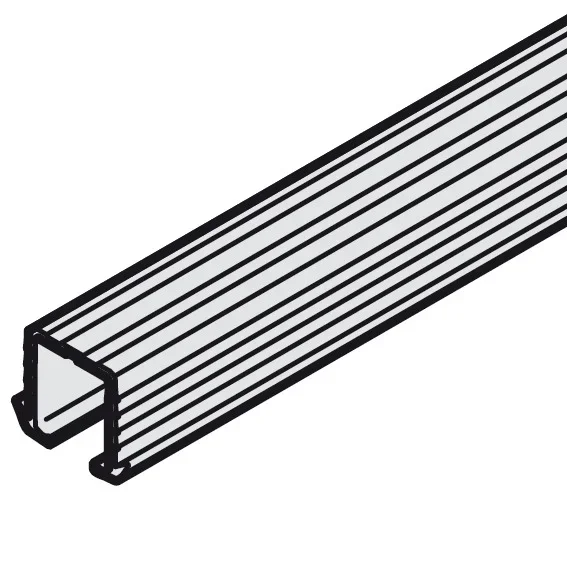

Hafele 402.33.643 Slido F-Line21 Single Running Track
Hafele 402.33.643 Single Running Track for Slido F-Line21 offers a robust and reliable solution for sliding door applications. Designed to pair perfectly with the Slido Classic IF/MF/VF and Slido Design IF systems, this aluminum track ensures smooth operation while accommodating various door types. With a generous length of 3.5 meters (approximately 11′ 5 13/16″), it is ideal for installations where expansive openings are required. This track supports door heights up to 2,400 mm and can handle weights of up to 40 kg, making it suitable for a range of residential and commercial applications. The door thickness compatibility ranges from 16 to 25 mm, and the track can accommodate door widths of up to 1,250 mm. Its elegant silver anodized finish adds a touch of sophistication while blending seamlessly into any interior design. Installation is versatile, allowing for press fitting, glue fixing, or screw fixing with countersunk head screws, ensuring a secure fit regardless of your setup. The Hafele 402.33.643 track is specifically designed for top mounting, making it an excellent choice for projects requiring durability and functionality without compromising aesthetics.
Single running track for Slido F-Line21
for Slido Classic IF/MF/VF, Slido Design IF, mill, 3.5 m length
Attributes
Area of application: Top
Cabinet top panel thickness min.: 19.00 mm
Color/finish: Silver colored, anodized
Dim. ( W x H): 16 x 13 mm
For door height: ≤2,400 mm
For door thickness: 16 – 25 mm
For door weight: ≤40 kg
For door width: ≤1,250 mm
Installation: For press fitting and for glue fixing into groove 16 mm (5/8″) or for screw fixing with countersunk head screws 3 mm (1/8″)
Length: 3,500 mm
Length (inch): 11′ 5 13/16″
Material: Aluminum
Position: top
Product type: Single Top Running Track
Suitable for: Häfele Slido F-Line
Track version: Single
Resources
- CAD data
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.17
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.19
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.21
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.23
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.75
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.77
