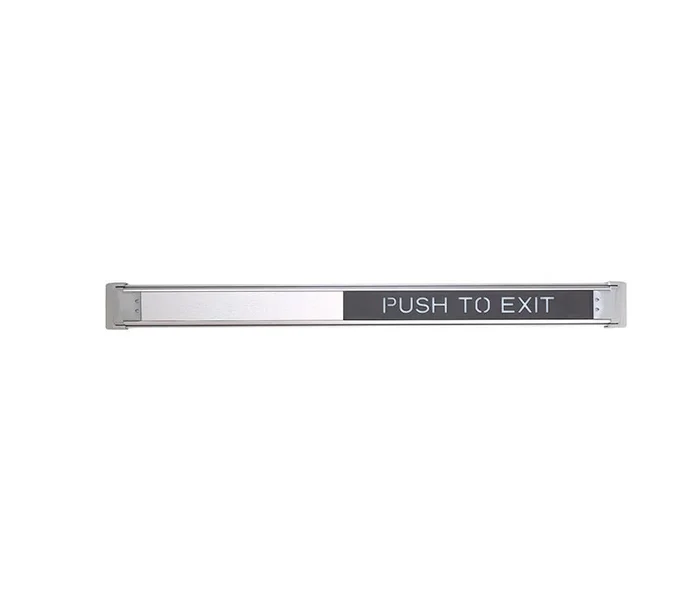

Schlage 692 42 628RD L Smartbar 42″ Door Hardware
Schlage Electronics 692 42 628RD L Smartbar 42 Inch offers a reliable solution for commercial spaces needing efficient egress management. This SmartBar is an electronic request-to-exit device featuring a narrow stile pushpad design, ensuring it fits seamlessly within various door styles, including aluminum, hollow metal, and wood. With its low-profile design, it provides ample clearance while maintaining a sleek aesthetic. The 692 SmartBar employs patent-pending infrared detection technology that activates the locking device upon breaking the light beam, enabling one-motion egress without requiring prior knowledge from the user. Its robust construction, featuring heavy-duty aluminum extrusion and cast metal end caps, guarantees durability while minimizing maintenance due to its lack of moving parts. Prominently displayed “PUSH TO EXIT” lettering, with an optional glow-in-the-dark feature, ensures clear visibility for occupants. An audible alarm adds an extra layer of security, making it ideal for high-traffic areas. The device is field-reversible for left- or right-hand installations and comes with quick installation brackets for straightforward setup. With a 42-inch length and satin aluminum clear anodized finish, the Schlage Electronics 692 SmartBar is the perfect choice for enhancing safety and accessibility in commercial environments.
Smartbar 42 Inch
SmartBar Request-to-Exit Device, Narrow Stile Pushpad, Low Profile, 42″, Red Lettering, LHR, Satin Aluminum Clear Anodized
The 692 SmartBar is an electronic switching device with no moving parts, which serves as a non-latching request-to-exit device. It allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with âìÃâìÃno prior knowledgeâìÃâÓ required by the user.
An electronic switching device with no moving parts, which serves as a non-latching request-to-exit device.
The 692 series SmartBar allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with “no prior knowledge” required by the user. Touching the SmartBar at any point on the bar activates internal circuitry which controls power to the locking device. No moving parts results in low maintenance and long life.
- Patent-pending infrared detection along bar releases locking device when light beam is broken
- One motion egress when installed with electromagnetic or electrified locks
- Large “PUSH TO EXIT” lettering provides obvious exit indication with glow-in-the- dark option
- Low profile provides ample clearance through the door
- Audible alarm is standard
- Left- or right-hand reverse (field reversible)
- For aluminum, hollow metal and wood doors
- No moving parts for low maintenance and long life
- Heavy-duty aluminum extrusion with cast metal end caps for maximum durability
- Quick installation brackets/universal mounting system
Attributes
Manufacturer surcharge: 4.5%
Base Material: Aluminum
Commercial Residential: Commercial
Device Length: 42″
Device Type: Low Profile
Finish: 628/US28
Fire Rated: No
Includes Trim: No
Installation: Commercial
Pack Qty: 1
Pbs Options: 6081776,6081786
Physical Appearance: Narrow Stile Pushpad
Series: 692 Series SmartBars
Subtype: Request-to-Exit Devices
Switch Type: Request to Exit, DPDT
Type: Exit Devices
Unit of Measure: Each
