Description
Richelieu 246014170 Soft-Close Sliding Door Mechanism
Richelieu 246014170 Soft-Close Mechanism for Sliding Door offers a seamless solution for enhancing the functionality of barn door flat bar sliding systems. Designed specifically for wood doors weighing up to 176 lb (80 kg), this soft stop damper closing mechanism effectively slows down the door as it closes, preventing slamming and ensuring a gentle, quiet operation. This optional mechanism is cleverly concealed behind and mounted to the back of the flat bar track, maintaining the sleek appearance of your door setup. It is compatible with top-hung installations and works best with doors that have a thickness between 1 3/8 and 1 3/4 inches, and widths ranging from 36 to 40 1/8 inches. Manufactured from durable plastic with a stylish gray finish, the Richelieu Soft-Close Mechanism is not only functional but also aesthetically pleasing. The product includes screws for easy installation, and its one-way operation guarantees a straightforward user experience. Ideal for both residential and professional applications, this mechanism enhances the longevity of your sliding door system while delivering a refined touch to any space. Embrace the convenience and sophistication of the Richelieu Soft-Close Mechanism for a more enjoyable living environment.

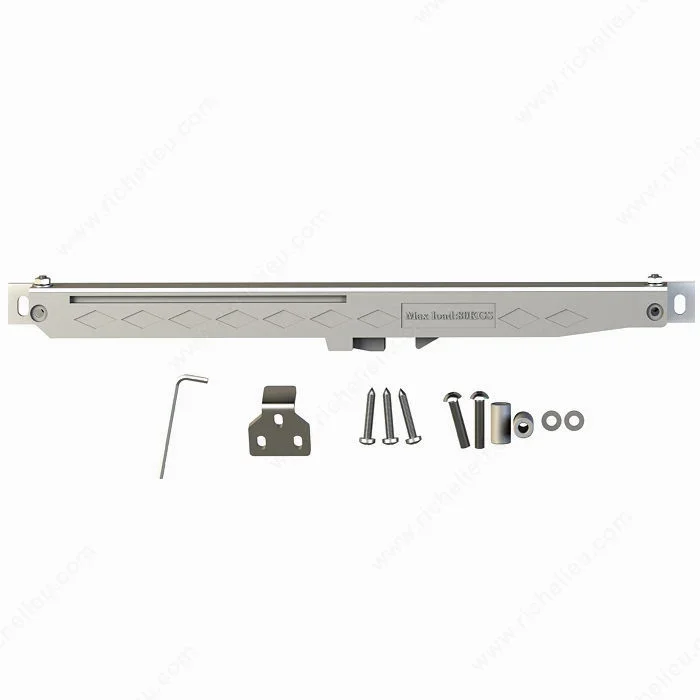

Soft-Close Mechanism for Sliding Door
Soft stop damper closing mechanism for barn door flat bar sliding systems for wood doors weighing up to 176 lb (80 kg) each.
This optional mechanism works with the track stopper to assist in slowing the moving door. The mechanism is hidden behind and mounted to the back of the flat bar track.
Attributes
Application: Barn Door
Brand: Onward, Richelieu
Depth: 21 mm
Detailed Door Movement: Barn door
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 850 to 1 020 mm
Finish: Stainless Steel (170)
Load Capacity: 176 lb*
Manufacturing Material: Plastic
Material: Plastic
Overall Height: 20 mm
Packaging format: Box
Product #: 246014170
Product Type: Soft-Close and Hardware
Product number: 246014170
Product type: Soft-Close and Hardware
Product №: 246014170
Screw/ Nail: Included
Screw/ Nail Included: Yes
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Unit: Box
Unit 1: carton – 10
Unit 2: carton – 10
Weight Capacity per Door: 80 kg
Width: 340 mm
Resources
- Instructions
- Line art
