Description

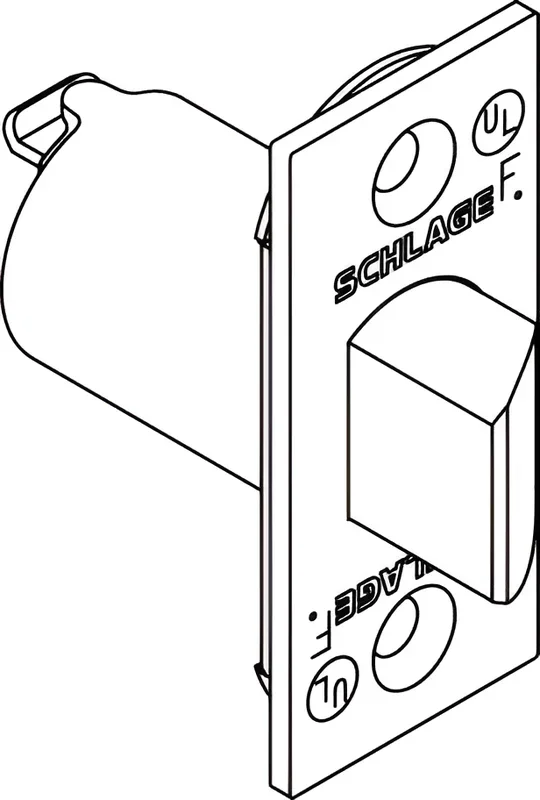

Schlage 11-116-605-ISO +Springlatch 2-3/4in Square A/AL Series
Schlage Lock Company 11-116-605-ISO +Springlatch 2-3/4in Square A/AL Series is designed for versatility and security in commercial applications. This latch is adjustable for both flat and beveled edge doors, ensuring a seamless fit for various installations. Crafted with precision, the AL Series latches and strikes are available in an array of finishes, including brass, bronze, and chrome, allowing you to match them perfectly with your lock trim. The 11-116-605-ISO features a backset of 2-3/4 inches and comes with a robust faceplate measuring 1″ x 2-1/4″ in square corner design. With a housing diameter of 7/8 inches (22mm), this latch is engineered for reliability. It includes a deadlatch with a 1/2-inch (13mm) throw, identified by part number 11-096, along with a matching springlatch for smooth operation, designated as part number 11-116. Installation is straightforward, making it an ideal choice for building professionals and knowledgeable homeowners looking to enhance their security systems. When ordering, ensure to specify the quantity, part number, and desired finish. Elevate your security with Schlage’s trusted reputation and high-quality components.
+Springlatch 2-3/4in Square A/AL Series
Notice: The info below is not item specific.
AL Series latches are adjustable for flat or beveled edge doors. Latches and strikes are furnished in brass, bronze or chrome finishes compatible with lock trim. When ordering separately, specify quantity, part number, and finish.
| Backset | Faceplate | Hsg. Diameter | Deadlatch 1/2″ (13mm) Throw | Springlatch 1/2″ (13mm) Throw |
|---|---|---|---|---|
| 2-3/8″ | 1″ x 2-1/4″ Square Corner | 7/8″ (22mm) | 11-085 | 11-068 |
| 2-3/8″ | 1″ x 2-1/4″ Radius Corner | 7/8″ | 11-088 | 11-069 |
| 2-3/8″ | 1″ Circular Drive-In | 1″ | 11-104 | 11-110 |
| 2-3/4″ | 1″ x 2-1/4″ Square Corner | 7/8″ | 11-091 | 11-111 |
| 2-3/4″ | 1-1/8″ x 2-1/4″ Square Corner Standard | 1″ | 11-096 | 11-116 |
| 2-3/4″ | 1″ x 2-1/4″ Radius Round Corner | 7/8″ | 11-092 | 11-112 |
| 2-3/4″ | 1″ Circular Drive-In | 1″ | 11-105 | 11-113 |
| 3-3/4″ | 1-1/8″ x 2-1/4″ Square Corner | 1″ | 11-103 | 11-118 |
Attributes
Alternate Codes: 043156932900, 11-116605, 11116605, 11-116-605-ISO, 11116605ISO, 117791, 217083, SCH11-116605-ISO
Category: Lock Components, Etc., Lock Parts, Lock Sets
Door Application: Commercial Locks
