Description

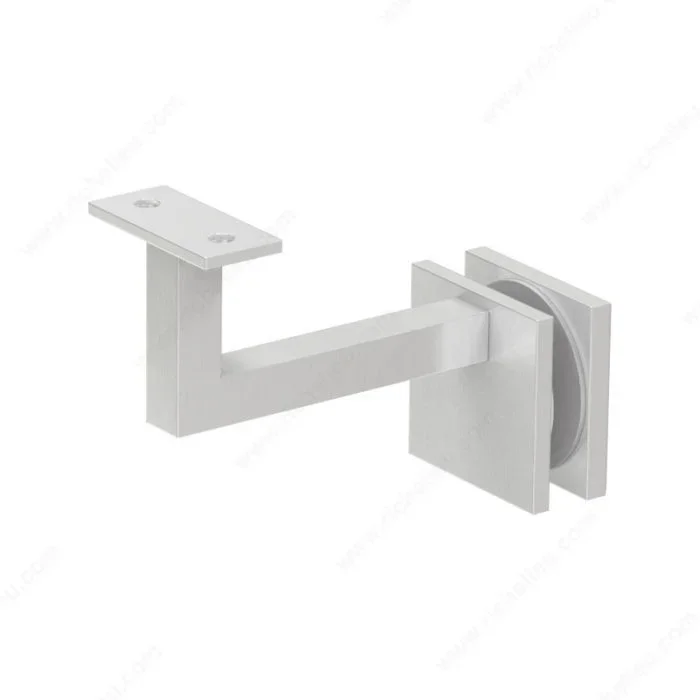

Richelieu SSZH1071116S Square Glass Fixed Mount Bracket
Richelieu SSZH1071116S Square Glass Mount Fixed Bracket is expertly crafted from durable Stainless Steel 316, ensuring longevity and resistance to corrosion, making it ideal for both interior and exterior applications. This sleek bracket is designed to securely support a flat surface handrail from a glass panel, providing a clean and modern aesthetic to your space. With a satin finish, the SSZH1071116S not only offers practicality but also enhances the visual appeal of your railing system. It features a fixed position adjustment and a projection of 3 1/2 inches, accommodating various design preferences. The required glass drilling and specific safety glass thickness of 13/32 to 17/32 inches ensure that the bracket is versatile for different glass installations. Installation is straightforward, but it must be carried out by qualified personnel to guarantee safety and structural integrity. The mounting plate measures 1 31/32 inches, and the milling diameter is 3/4 inches, allowing for secure attachment. For maintenance, simply clean with a soft cloth and non-abrasive soap or ammonia.Richelieu’s commitment to quality ensures that this bracket will not only meet but exceed your expectations, making it a reliable choice for your glazing projects.
Square Glass Mount Fixed Bracket
Stainless steel bracket designed to support a flat surface handrail from a glass panel.
Important information
For safety purposes, use tempered glass.
This illustration is provided for visual reference only. Actual product may differ from the illustration. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always use the instructions inside the package.
Always set the product in a suitable material.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must be done by qualified personnel. Always make sure that the product is properly installed using suitable fixings to the support material.
Attributes
Adjustment: Fixed Position
Arm Size: 1/2 in
Category: Brackets
Finish: Stainless Steel
Glass Drilling: Required
Handrail Type: Flat Tubing
Material: Stainless Steel 316
Milling Diameter: 3/4 in
Mounting Plate: 1 31/32 in
Product #: SSZH1071116S
Projection: 3 1/2 in
Recommended Location Usage: Interior, Exterior
Saddle: Included
Safety Glass Thickness: 13/32 to 17/32 in*
Thread Type: M8
Type of Mounting: Glass Mount
Resources
- Line art
