Description

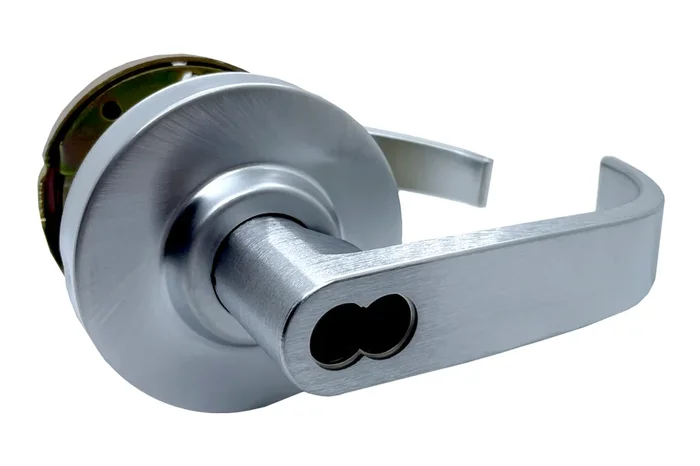

Arrow Lock RLX82BRR26D-IC-2 3/4 BS Storeroom Clutched Broadway Lever, SFIC Less Core, 2-3/4″ Backset, Satin Chrome
Arrow Lock Company RLX82BRR26D-IC-2 3/4 BS Storeroom Clutched Broadway Lever is a robust solution for commercial security needs. This Grade 2 lockset features a freewheeling lever operation, enhancing its resistance to wear and tear in high-traffic environments. It comes equipped with a removable through bolt design, making installation and maintenance straightforward and efficient. Designed to accommodate door thicknesses from 1-3/8″ to 1-3/4″, this storeroom lockset is factory set for 1-3/4″, ensuring a secure fit for various door types. The lockset includes a 2-3/4″ backset and a standard 6-pin solid brass cylinder, complemented by two nickel-plated brass keys. The RLX82 is certified by BHMA A156.2, Series 4000, and is UL Listed, providing assurance in its quality and reliability. The satin chromium plated finish (626/US26D) not only adds an elegant touch but also provides excellent durability against corrosion and wear. As a non-handed unit, it offers flexibility in installation, making it suitable for a range of applications. Backed by a 10-year warranty, the Arrow Lock Company RLX82BRR26D-IC-2 is an ideal choice for upgrading or replacing existing locksets in commercial settings.
Storeroom Clutched Broadway Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome
Notice: The info below is not item specific.
RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.
Specifications:
- Certification:
BHMA A156.2, Series 4000, Grade 2, UL Listed. - Freewheeling Lever Action:
Standard. - Door Thickness:
Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″ - Strike:
ANSI 1-1/4″ x 4-7/8″ - Latch:
2-3/4″ backset, 1-1/8″ front - Cylinder:
Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available. - Handing:
Non-Handed. - Case Quantity:
6 per case. - Average Case Weight:
26 lbs. - Warranty:
10 Years.
Functions:
- RLX01-SR: Passage
- RLX08-SR: Single Dummy
- RLX72-SR: Privacy
- RLX81-SR: Entrance/Office
- RLX82-SR: Storeroom
- RLX87-SR: Classroom
- RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.
Parts:
- RLX-201A:
Screw pack for chassis, rose, & thru-bolts.
Finishes:
- 03/605/US3 – Bright Brass
- 613E/US10BE – Dark Oxide Satin Bronze, Equivalent
- 26D/626/US26D – Satin Chromium Plated
Features
- Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
- Average Case Weight: 26 lbs.
- Freewheeling Lever Action: Standard.
- Door Thickness: Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″
- Latch: 2-3/4″ backset, 1-1/8″ front
- Warranty: 10 Years.
- Handing: Non-Handed.
- Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
- Case Quantity: 6 per case.
- Strike: ANSI 1-1/4″ x 4-7/8″
Attributes
Alternate Codes: RLX82BRR26D-IC-2 3/4 BS, RLX82BRR26DIC234BS
Backset: 2-3/4″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Certifications: A117.1, A156.2, A156.41, ADA, ANSI, BHMA, ICC, UL/cUL Listed 3 Hour
Cylinder Type: 6 or 7-Pin
Door Application: Cylindrical Levers
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Door Thickness: 1-3/8″-1-3/4″
Finish Code: 26D
Finish Color: Satin Chrome
Function: Storeroom
Grade: Grade 2
Handing: Non-Handed
Key Quantity: 2
Latchbolt Type: 2-3/4″ Deadlatch
Lever Design: Broadway
Manufacturer: Arrow Lock Company
Rose/ Escutcheon: Rose
Series: RLX
Strike Type: Default ANSI
