LCN 1261-LONG 689 AL Surface Closer Instructions
LCN 1261-LONG 689 Surface Closer AL is a Grade 1 surface door closer designed for durability and ease of use in commercial applications. This long arm closer features a push side top jamb mounting style, accommodating a 180-degree swing and adjustable spring sizes from 1 to 5. Crafted from robust cast iron, it ensures reliable performance in light to medium-duty settings. The LCN 1260 Series is particularly user-friendly, with a non-handed design and a peel-n-stick template that simplifies installation on the most common commercial door footprints. Its all-weather fluid makes it suitable for various climatic conditions, ensuring consistent operation regardless of temperature. With a diameter piston of 1-3/8 inches and a heat-treated pinion journal, the LCN 1261-LONG is built to last. This closer meets ADA requirements, making it an excellent choice for accessibility compliance. Optional features include a Quick Fix™ bracket kit, a slimline cover, and corrosion-resistant finishes, allowing for customization based on specific needs. Weighing just 11 lbs, this surface closer is an ideal solution for both high-traffic environments and standard door setups, providing a reliable and effective closing mechanism for your doors.

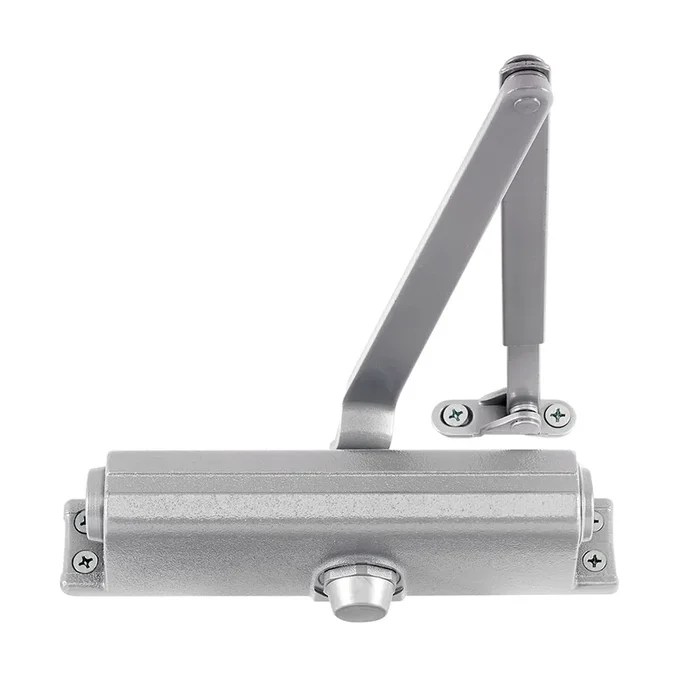

Surface Closer AL
Grade 1 Surface Door Closer, Long Arm, Push Side Top Jamb Mounting, 180 Degree, Size 1 to 5, No Cover, All Weather Fluid, Aluminum Finish, Non-Handed
The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.4
Arm Type: Long Arm
Baa Qualified: Yes
Base Material: Varies
Closer Size: 1 to 5
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: No
Degree Swing: 180 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 20 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Top Jamb
Origin: USA
Pack Qty: 1
Screw Type: Self-Reaming and Tapping
Series: 1260 Series Surface Mounted Closers
Ship Weight: 11 lbs.
Subtype: Surface Closers
Type: Surface
Ul Listing: UL10C
Unit of Measure: Each
