Description

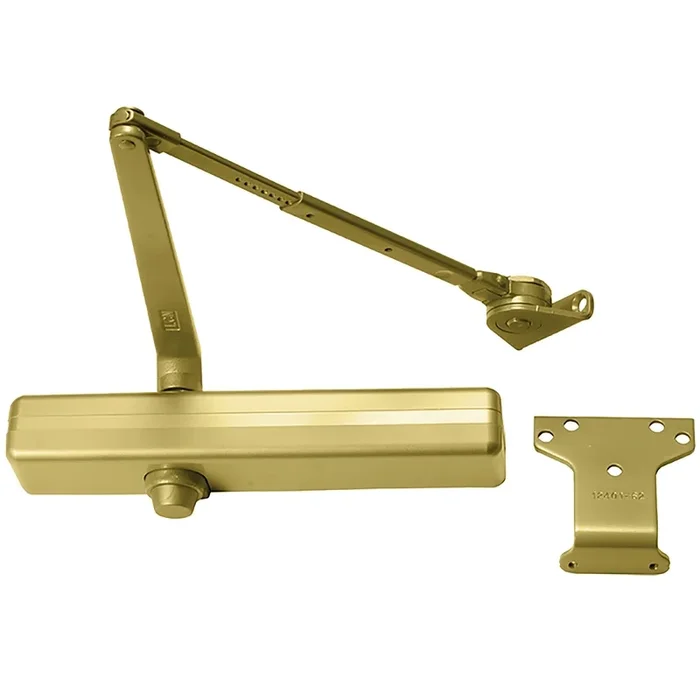

LCN 1461-Hw/PA 696 FC Brass Surface Closer
LCN 1461-Hw/PA 696 FC Surface Closer BRASS offers an exceptional blend of durability and versatility, designed to meet the demands of both commercial and institutional settings. This Grade 1 tri-mount surface closer, featuring a brass-painted satin finish, boasts a robust cast iron body and a full complement bearing for long-lasting performance. The adjustable spring size ranges from 1 to 6, ensuring compatibility with interior doors up to 5’0″ and exterior doors up to 4’0″. With its double lever arm friction hold open feature, the LCN 1461 allows for a 180-degree swing and can be installed on either the push or pull side of the door. Ideal for various applications, it meets ADA requirements, making it a reliable choice for accessibility compliance. The closer is equipped with concealed adjustment valves to allow for independent control of backcheck, closing, and latching speeds, mitigating tampering risks. Installation is streamlined with a stick-on template that significantly reduces setup time. Additional features include a Cush-N-Stop® function designed to protect the closer, door, and frame from damage during abrupt stops. With a 30-year limited warranty, the LCN 1461 offers a confident investment for any door hardware needs.
Surface Closer BRASS
Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Full Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Satin Brass Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Full Plastic
Degree Hold Open: 180 Deg.
Degree Swing: 180 Deg.
Finish: 696/US4
Finish Family: Matte Brass
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Pack Qty: 1
Pbs Options: 4404205
Series: 1460 Series Surface Mounted Closers
Ship Weight: 11 lbs.
Subtype: Surface Closers
Type: Surface
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1460 Series Cut Sheet
- 1460 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1460 Drop Plate Installation Guide
- LCN 1460 Product Guide
- LCN 1461 EDA Installation Guide
- LCN 1461 PA Mount Installation Guide
- LCN 1461 Peel-N-Stick Installation Guide
- LCN 1461 Product Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Video: LCN 1460 Door Closer Installation
- Von Duprin Finishes Chart
