Description

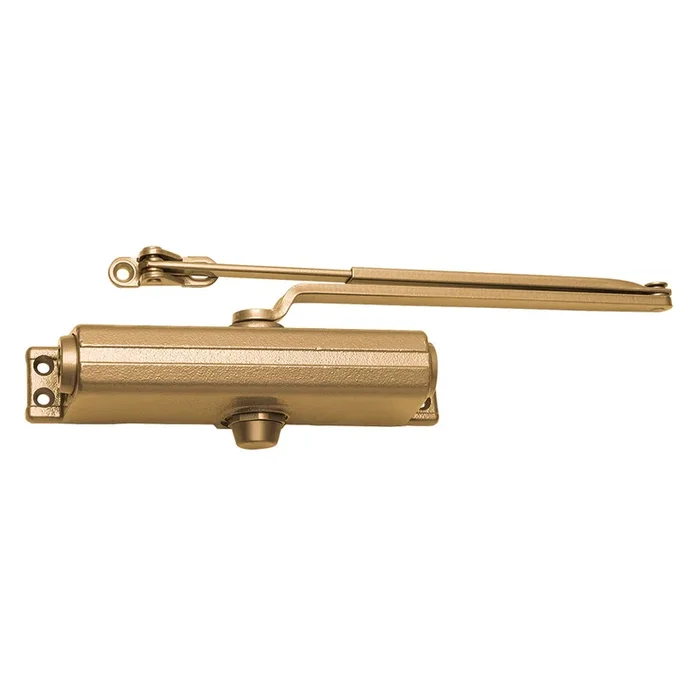

LCN 1261-Rw/PA 691 LTBRZ Surface Closer
LCN 1261-Rw/PA 691 Surface Closer LTBRZ is a Grade 1 surface door closer designed for commercial applications, offering a robust and reliable solution for door control. This model features a regular arm and a PA shoe, allowing for versatile push or pull side tri-mount installation. With a 180-degree swing and adjustable spring sizes from 1 to 5, it accommodates a wide range of door sizes, making it suitable for both interior and exterior use. Crafted from durable cast iron, the LCN 1260 Series closer meets ADA requirements and is equipped with all-weather fluid, ensuring optimal performance in various climates. The non-handed design simplifies installation, while the peel-n-stick template with a 3/4″ x 9-1/16″ mounting hole pattern facilitates quick and easy setup. Additional options include a Quick Fix™ bracket kit for added convenience and an optional slim line cover for aesthetics. With a limited 20-year warranty and a matte bronze finish, this closer not only enhances durability but also complements any décor. Weighing just 12 lbs, the LCN 1261-Rw/PA is an efficient choice for building professionals seeking a reliable, economical door closer solution.
Surface Closer LTBRZ
Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, 180 Degree, Size 1 to 5, No Cover, All Weather Fluid, Light Bronze Finish, Non-Handed
The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.4
Arm Type: Regular Arm
Baa Qualified: Yes
Base Material: Varies
Closer Size: 1 to 5
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: No
Degree Swing: 180 Deg.
Finish: 691/US10
Finish Family: Matte Bronze
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 20 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Qty: 1
Screw Type: Self-Reaming and Tapping
Series: 1260 Series Surface Mounted Closers
Ship Weight: 12 lbs.
Subtype: Surface Closers
Type: Surface
Ul Listing: UL10C
Unit of Measure: Each
