Description

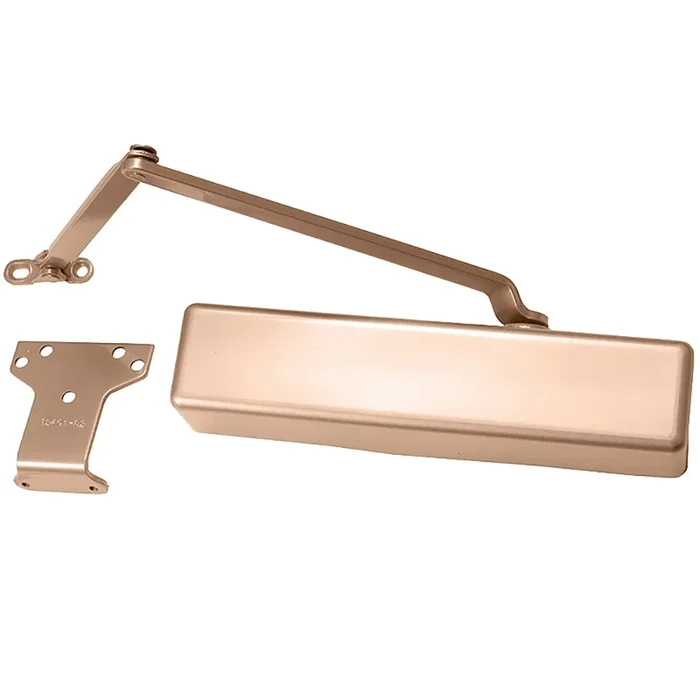

LCN 1461-RW/PA 691 Surface Closer LTBRZ
LCN 1461-RW/PA 691 Surface Closer LTBRZ offers exceptional durability and versatility for both commercial and institutional applications. This Grade 1 tri-mount surface closer is designed for easy installation on push or pull side configurations, featuring a slim plastic cover and a robust cast iron body. Engineered to withstand up to 2,000,000 cycles, the LCN 1461 ensures reliability with its fully adjustable spring strength, accommodating door sizes from 5’0″ for interiors to 4’0″ for exteriors. Equipped with a double lever arm regular and a parallel arm bracket, this closer provides a full 180-degree swing for maximum accessibility. The independent adjustment valves allow for precise tuning of backcheck, closing, and latching speeds, all while being concealed to prevent tampering. A unique Cush-N-Stop® feature is integrated into the arm, safeguarding against damage during abrupt stops. With a light bronze painted finish, the LCN 1461 is not only functional but also aesthetically pleasing. The closer meets ADA requirements, ensuring compliance across various settings. Whether you’re updating existing hardware or installing new systems, the LCN 1461-RW/PA is a reliable choice that combines performance with ease of use.
Surface Closer LTBRZ
Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Regular, Slim Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Light Bronze Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Slim Plastic
Degree Hold Open: 180 Deg.
Degree Swing: 180 Deg.
Finish: 691/US10
Finish Family: Matte Bronze
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Pack Qty: 1
Series: 1460 Series Surface Mounted Closers
Ship Weight: 11 lbs.
Subtype: Surface Closers
Type: Surface
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1460 Series Cut Sheet
- 1460 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1460 Drop Plate Installation Guide
- LCN 1460 Product Guide
- LCN 1461 EDA Installation Guide
- LCN 1461 PA Mount Installation Guide
- LCN 1461 Peel-N-Stick Installation Guide
- LCN 1461 Product Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Video: LCN 1460 Door Closer Installation
- Von Duprin Finishes Chart
