Description

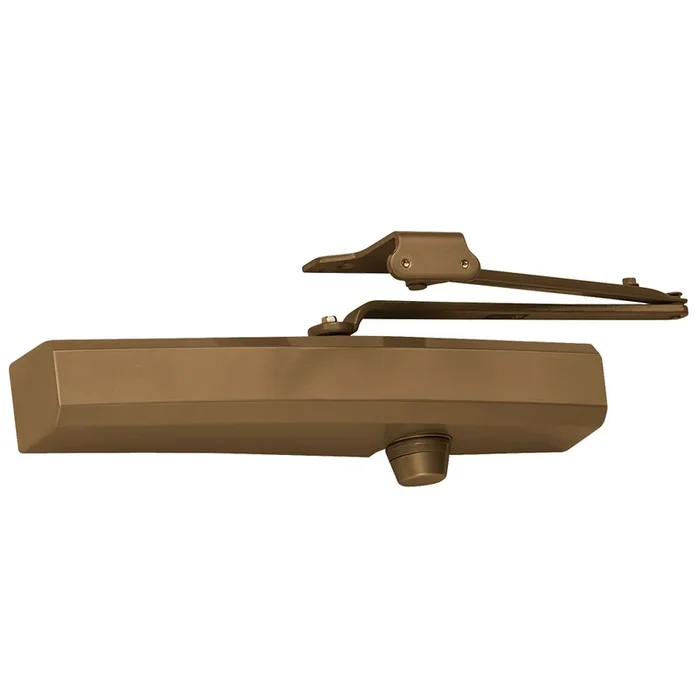

LCN 1450-Rw/PA 690 Surface Closer STAT
LCN 1450-Rw/PA 690 Surface Closer STAT is a Grade 1 cast aluminum surface mount closer designed for frequent use in low abusive traffic areas, making it an ideal choice for aluminum storefronts and interior offices. This medium duty closer features an adjustable spring size from 1 to 6, accommodating various door weights and sizes, with a maximum door width of 48 inches for exterior applications and 60 inches for interior use. Crafted with a durable cast aluminum body, this closer offers a sleek, slim plastic cover in a statuary bronze finish, ensuring both functionality and aesthetic appeal. The double lever arm with a parallel bracket is non-handed, allowing for versatile installation on the push or pull side of the door. Its patent-pending design includes peel-n-stick templates for easy installation, and the universal screw pack provides everything needed for a seamless setup. Additional features include adjustable back check and all-weather fluid, ensuring optimal performance in varying conditions. With a 25-year limited warranty, the LCN 1450 Series promises long-lasting reliability and peace of mind. This closer is UL listed and ADA compliant, making it a smart choice for commercial applications.
Surface Closer STAT
Grade 1 Cast Aluminum Surface Mount Closer, Size 1-6 Adjustable, Double Lever Arm with Parallel Bracket, Non-Handed, Slim Plastic Cover, Statuary Bronze Finish
The LCN Cast Aluminum Series closers were specially designed to deliver consistent, dependable, long lasting performance while offering high quality, effective solutions. This series of closers features a cast aluminum body, full compliment bearing, peel-n-stick templates and are offered in six standard finishes, as well as custom colors. The 1450 Series Medium Duty Closer is designed for frequent use and low abusive traffic areas, ideal for aluminum storefronts and interior offices.
The 1450 Series is a cast aluminum medium duty closer for frequent use and low abusive applications.
The 1450 Series also looks as good as it functions, with a standard slim line cover, optional full plastic cover or optional full metal cover, in six available standard finishes, as well as custom colors.
- Cast Aluminum Body
- Patent Pending Design
- Peel-n-Stick Templates
- Universal Screw Pack
- Full Complement Bearing
- All Weather Fluid
- Adjustable Spring Size 1-6
- Non-Handed
- 25 Year Warranty
Attributes
Manufacturer surcharge: 7.0%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Double Lever Arm, with PA Bracket
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Slim Plastic
Degree Swing: 180 Deg.
Door Size: Ext to 48″, Int to 60″
Finish: 690/US20
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Limited Warranty: 25 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Qty: 1
Screw Type: Machine and Self-Tapping
Series: 1450 Series Surface Mounted Closers
Ship Weight: 9 lbs.
Subtype: Surface Closers
Through Bolts: Yes
Type: Surface
Ul Listing: 10C
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1450 Series Cut Sheet
- 1450 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1250, 1450 & 4050 Flush Panel Adapter Bracket Installation Guide
- LCN 1450 & 1450DA Pull/Jamb/PA Mount Installation Guide
- LCN 1450 Drop Plate Installation Guide
- LCN 1450 Series Data Sheet
- LCN 1450/1450DA CUSH/SCUSH Installation Guide
- LCN 1450/1450DA Installation Guide
- LCN 1450T Catalog
- LCN Closers & Auto Operators Installation Guide
- Von Duprin Finishes Chart
