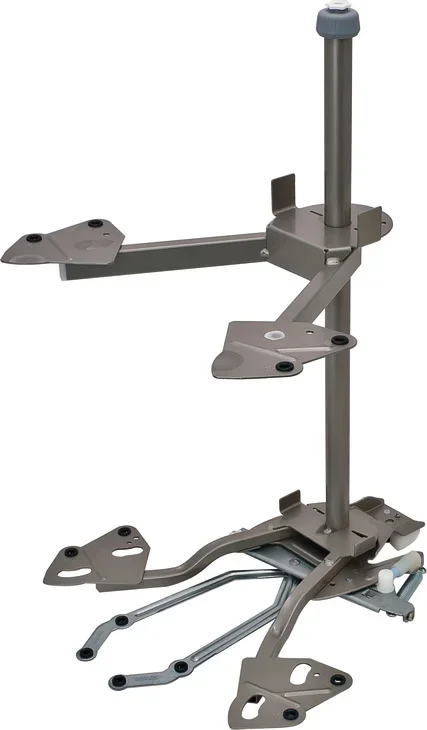

Hafele 541.39.420 Suzie-Q Self-Closing Revolving Hardware
Hafele 541.39.420 Suzie-Q, Revolving and Self-Closing shelves combine classic design with modern functionality. Crafted in a sophisticated champagne finish, these shelves are ideal for both frame and frameless constructions, accommodating door openings of 305 x 305 mm (12″ x 12″). The unique revolving mechanism allows the folding doors to draw inward and rotate smoothly within the cabinet, ensuring easy access to your stored items while maintaining a sleek appearance. Designed for cabinets with a depth and width of 36 inches, the Suzie-Q system features pre-assembled components for quick installation. The shelves can be effortlessly attached and removed, making adjustments simple. The robust steel construction is powder-coated for durability, ensuring a long-lasting addition to your furniture.Installation is straightforward, requiring a minimum frame width of 40 mm (1 5/8″) for door mounting, whether for slab, panel, or framed doors. The supplied mounting instructions guide you through the process, while the upper post bearing and door mounting plate sets enhance stability and performance.With its elegant design and practical features, the Hafele Suzie-Q offers a refined storage solution that elevates any space.
Suzie-Q, Revolving and Self-Closing
Champagne, face frame inset
A classic revolving design with a twist, these shelves offer ample storage and close on their own When opened, the folding doors are drawn inward by the mechanism and revolve through the cabinet interior Pre-assembled components for quick assembly Shelves quickly attach and are easily removed Post with pre-installed folding assembly Upper post bearing 2 door mounting plate sets
Attributes
Area of application: For frame and frameless construction For front mounted, internally revolving doors For door opening 305 x 305 mm (12″ x 12″)
Color/finish: Champagne
For cabinet depth: 36″
For cabinet width: 36″
Height (inch): 3/16 – 7/8″
Installation: Door mounting for slab, panel and framed doors with a frame width minimum of 40 mm (1 5/8″)
Material: Steel, powder-coated
Order reference: Please note that the cabinet bottom must be positioned lower if the door height is to match adjacent cabinetry.
Supplied with: Mounting instructions
Version: Face frame inset
Resources
- Installation instructions
- SuzieQ Faceframe Inset CAD drawing
- SuzieQ Mounting Instructions
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 3.10
- Technical data sheet
